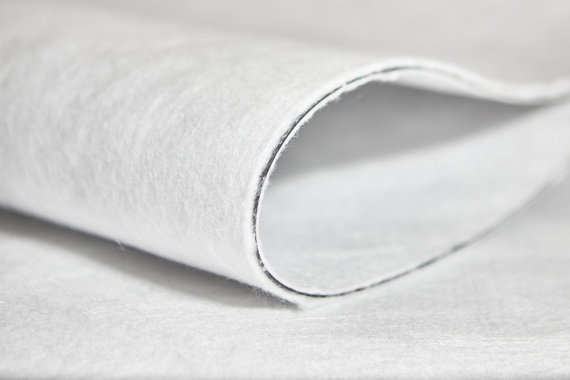

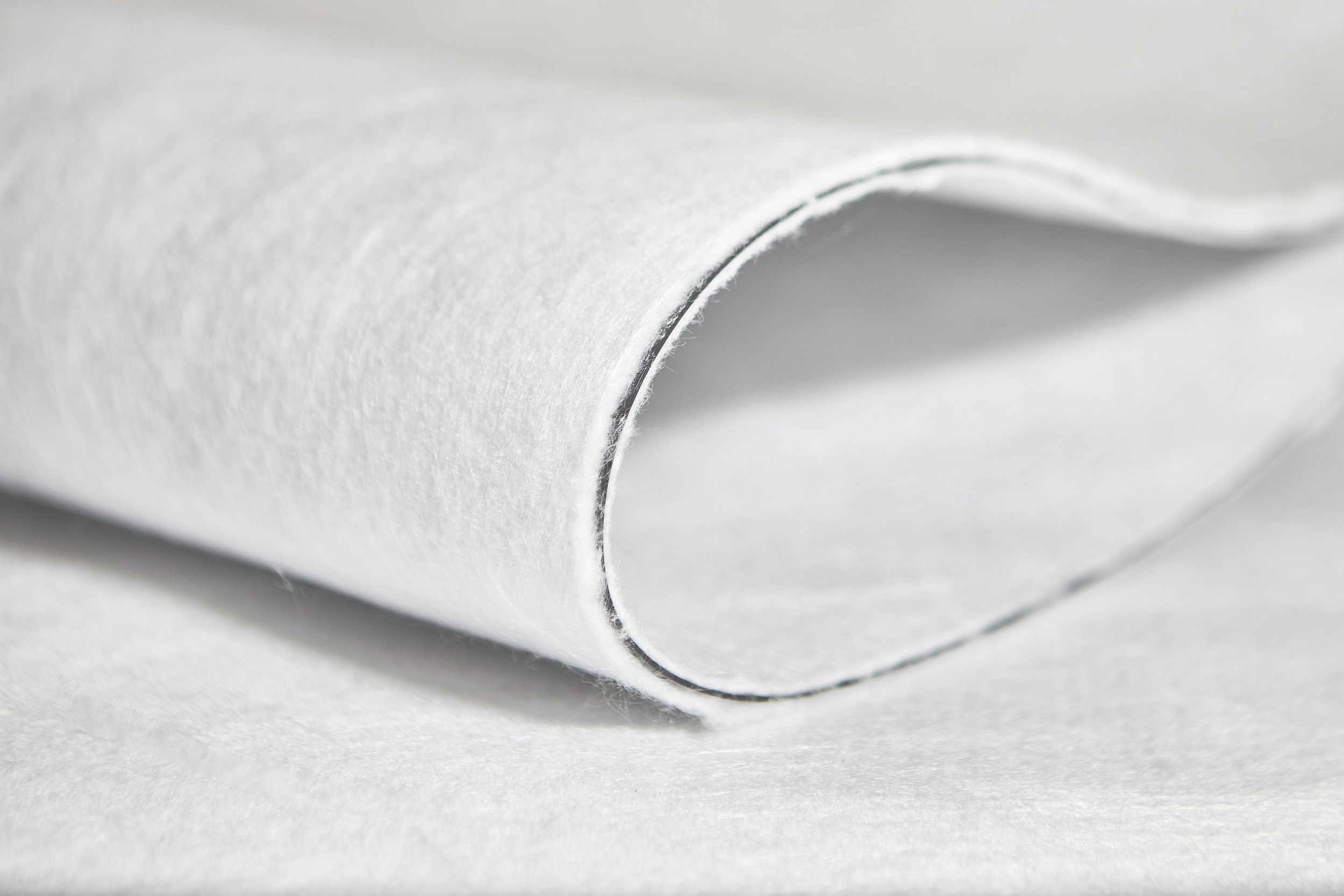

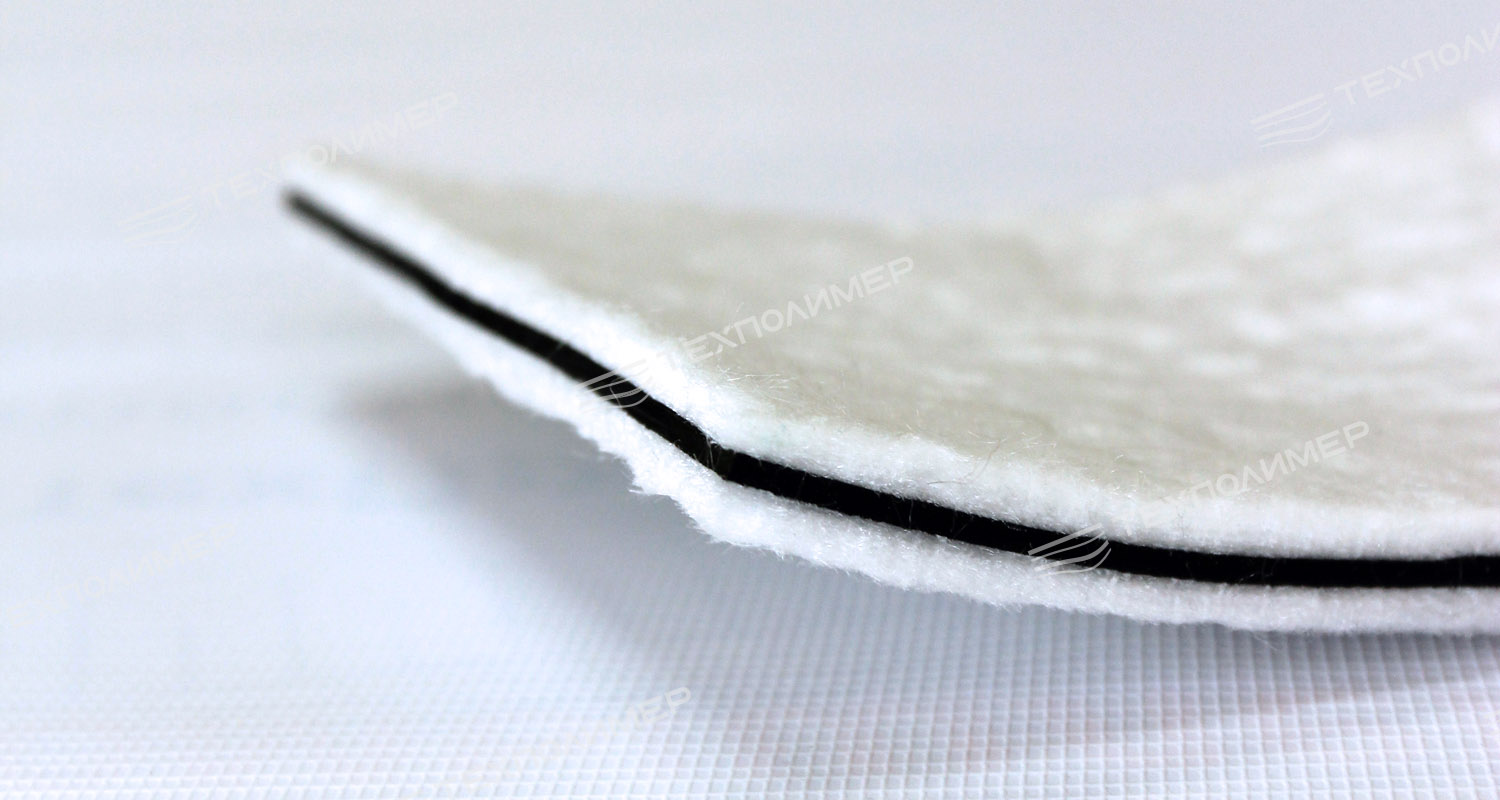

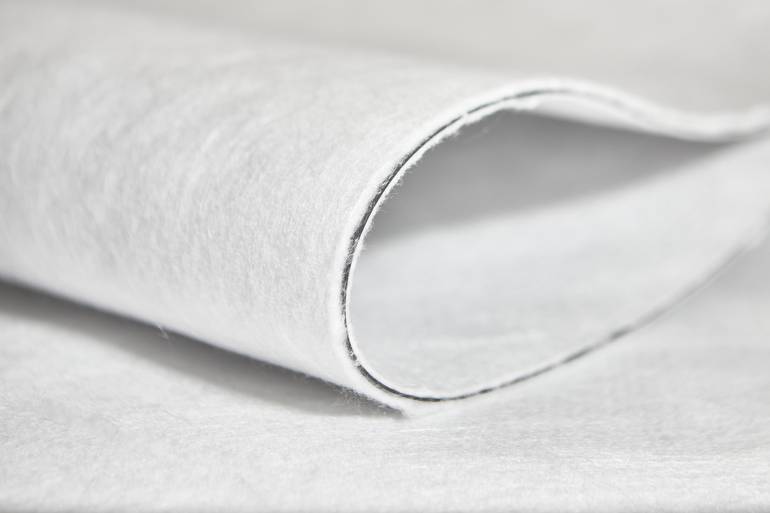

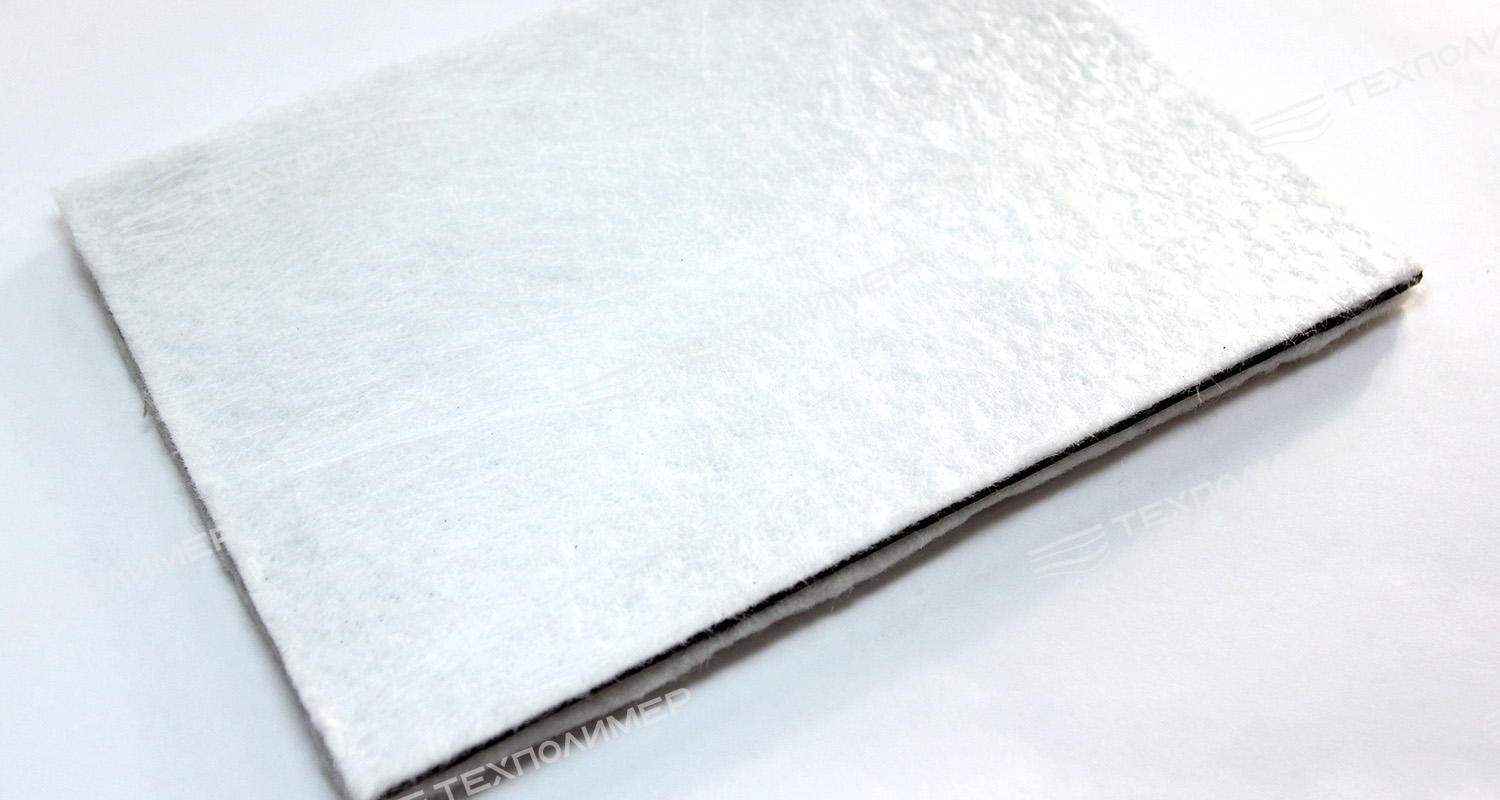

Polymer geomembrane sheet with a protective and drainage coating made of polypropylene-based geosynthetic material (geotextile) with a density of up to 800 g/m2 on both sides. This solution protects the geomembrane from damage during the construction of facilities on weak foundations and soils with sharp inclusions.
- Protection against mechanical damage. A protective drainage layer with a density of up to 800g/m2 prevents the geomembrane from being damaged by sharp soil inclusions, extending its service life.
- Shear resistance. The textured surface of the polymer sheet provides improved adhesion to the geotextile layer, ensuring reliable fixation of the composite to the base, preventing its displacement and ensuring the watertightness of the structure.
- Reduced installation time. The geomembrane Type 6's integrated connection to the protective drainage layer accelerates the installation process.
- Municipal solid waste (MSW) and industrial waste (IW) landfills
- Oil production cluster sites
- Road construction
- Oil and gas pipelines
- Hydrometallurgical heap leaching facilities
- Sludge and tailings storage facilities
- Toxic and radioactive waste repositories
- Storage and emergency tanks
- Underground structures
|
TECHNICAL SPECIFICATIONS Polymer sheet (geomembrane), type 6 LLDPE |
|
|
TU 2246-001-56910145-2014 |
|
|
Parameter |
Type 6** |
|
Nominal polymer sheet thickness, mm, ±10% |
2,0 |
|
*Standard roll size, m |
5*40 |
|
Tensile strength, minimum, kN/m |
32 |
|
Elongation at break, minimum, % |
500 |
|
Tear resistance, minimum, N |
225 |
|
Puncture resistance, N, minimum |
2000 |
|
Water permeability, water absorption |
0 |
|
Vapour permeability |
0 |
|
Operating temperature range, °C |
from -60 to +60 |
|
UV resistance, minimum, % |
90 |
|
* By agreement with the customer, sheets of other sizes may be manufactured ** Geotextile density: 250 g/m². By agreement with the customer, geotextile with a different basis weight of up to 800 g/m² may be used. Full technical specifications of the geomembrane are available upon request |
|
Geomembrane: Type 6 from the manufacturer
Buy Type 6 geomembrane «TECHPOLYMER» from a leading manufacturer in Russia. We have been operating since 1994 and supply materials to leading companies, including Rosneft, Gazprom, Rosatom, Russian Railways and others. We handle the full range of work—from design through installation and commissioning.
The price of Type 6 geomembrane depends on the material, volume and delivery location. We ship products in any volume throughout Russia and beyond.
