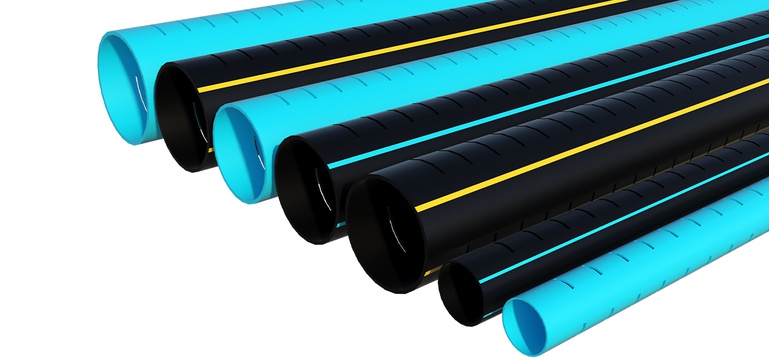

Perforated PE Pipe

СТО 56910145-041-2020

Perforated drainage pipes made of PE 100 high-density polyethylene (HDPE) offer high strength, excellent flow capacity, and a long service life of up to 50 years.

Perforated drainage pipe

Drainage filter pipes collect excess water and transport it outside the site or to a collection tank. These pipes are perforated, allowing water to enter the pipeline directly from the soil; the hole size prevents large soil particles from entering the pipe. A properly designed drainage system helps make the topsoil stable and relatively dry.

Advantages

Unlike a corrugated pipe, it has high resistance to mechanical impact and does not present cleaning difficulties
Resistance to rot, aggressive chemical environments and atmospheric precipitation
Low structural weight, facilitating installation and transportation
Easy to use, install and maintain
Long service life.

Applications

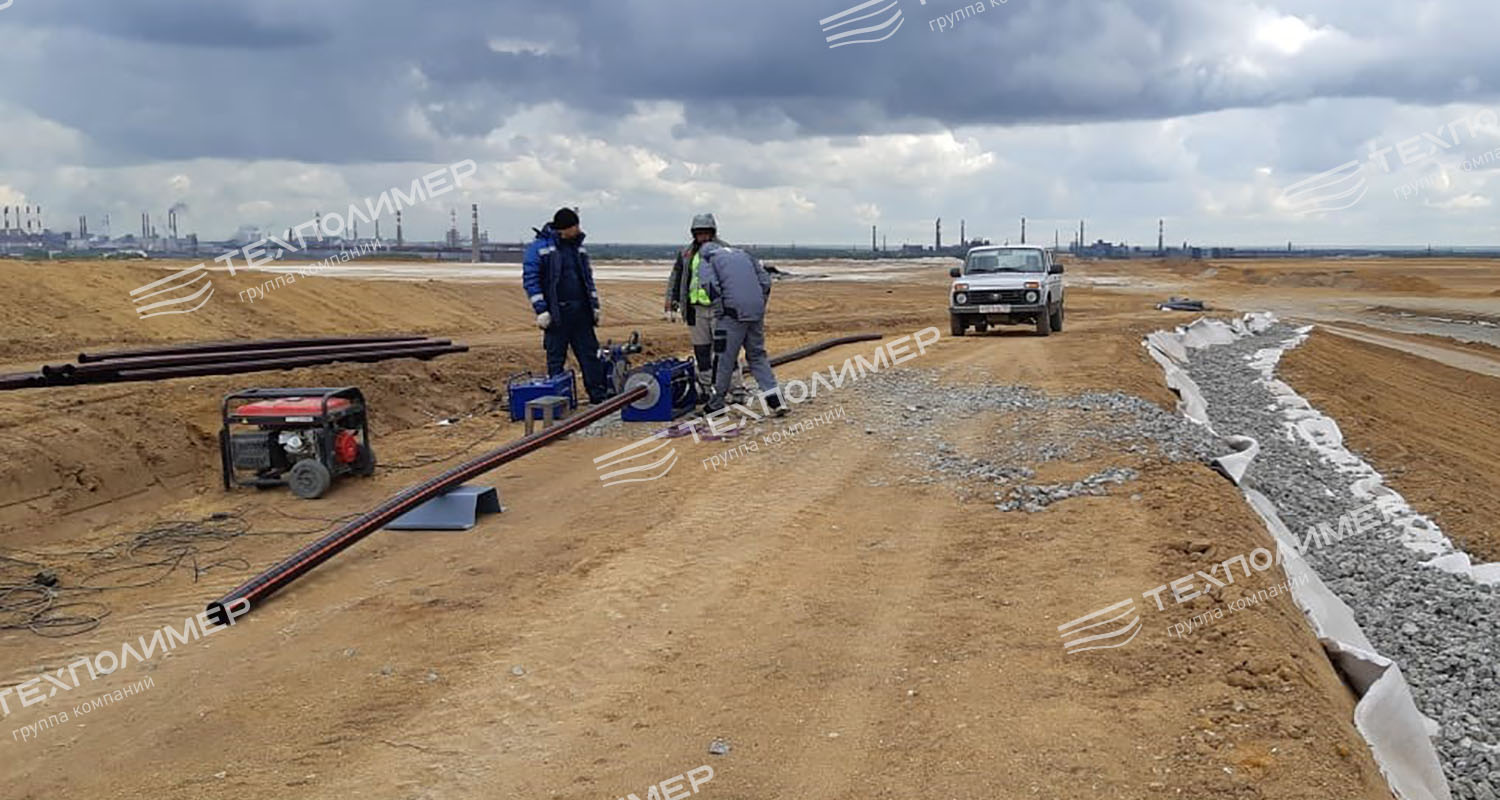

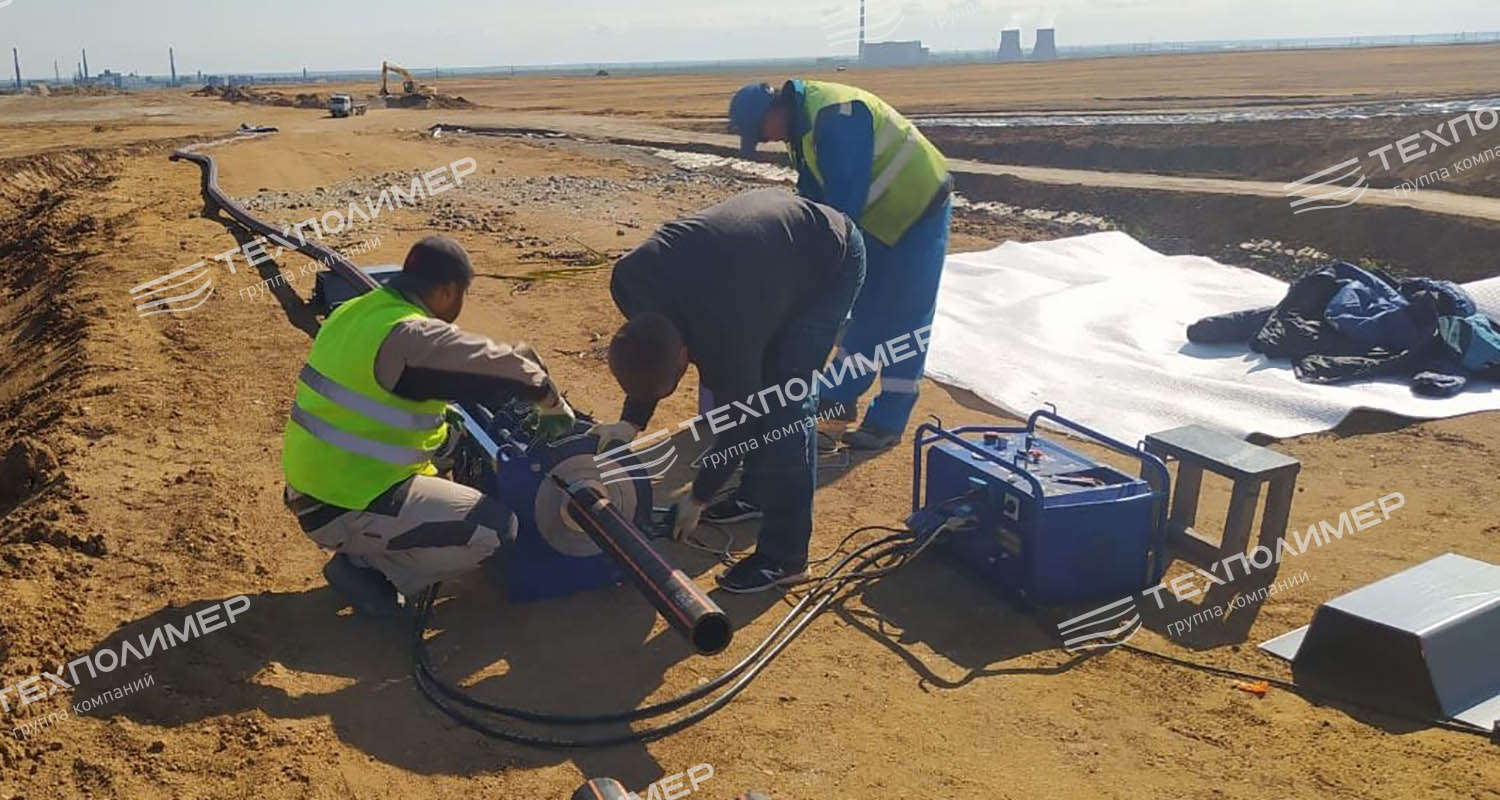

Leachate collection and degassing systems at municipal solid waste landfills
Heap leaching technologies for gold-bearing raw materials, copper, nickel and other minerals
Drainage provision in road construction
Drainage of excessively waterlogged land in the development of agricultural areas.

D трубы	SDR	Водоприемные отверстия		S водоприемных отверстий на 1мп, см2
		Размер, мм	Шаг, мм	Кол-во рядов отверстий
				1	2	3	4
110, 125, 140, 160, 180	21-9	6х50	100	30	60	_	_
200	21-9	6х90	65	_	162	243	_
		6х80			144	216
		6х70			126	189
		6х60			108	162
	21-9	6х90	65	_	162	243	_
225		6х80			144	216
		6х70			126	189
		6х60			108	162
	21-9	6х90	65	_	162	243	_
250		6х80			144	216
		6х70			126	189
		6х60			108	162
	SDR17,6	6х135	65	_	243	364,5	_
	SDR17
280	SDR13,6
	SDR11	6х120			216	324
	SDR9	6х110			198	297
	SDR17,6	6х135	65	_	243	364,5	_
	SDR17
315	SDR13,6
	SDR11	6х120			216	324
	SDR9	6х110			198	297
	SDR17,6	6х135	65	_	243	364,5	_
	SDR17
355	SDR13,6
	SDR11	6х120			216	324
	SDR9	6х110			198	297
400	SDR17,6	6х160	65	_	288	432	_
	SDR17
	SDR13,6
	SDR11
	SDR17,6	6х190	65	_	342	513	_
450	SDR17
	SDR13,6
	SDR11
	SDR17,6	6х190	65	_	342	513	_
500	SDR17
	SDR13,6
	SDR11
	SDR17,6	6х220	65	_	396	594	792
560	SDR17
	SDR13,6	6х210			378	567	756
	SDR11	6х190			342	513	684
	SDR17,6	6х220	65	_	396	594	792
630	SDR17
	SDR13,6	6х210			378	567	756
	SDR11	6х180			342	513	684

Закажите перфорированные дренажные трубы от производителя

TECHPOLYMER is a leading manufacturer of geosynthetic materials in Russia. We have been operating since 1994 and supply materials to major companies, including Rosneft, Gazprom, Rosatom, Russian Railways, and others. We provide a full range of services, from design and engineering to installation and commissioning. We supply products in any volume throughout Russia and internationally.

We manufacture perforated pipes in a wide range of diameters, from 110 to 630 mm. The pipes are manufactured in accordance with STO 56910145-041-2020, while the perforation pattern is selected based on the specific application.
