СТО 56910145-011-2015

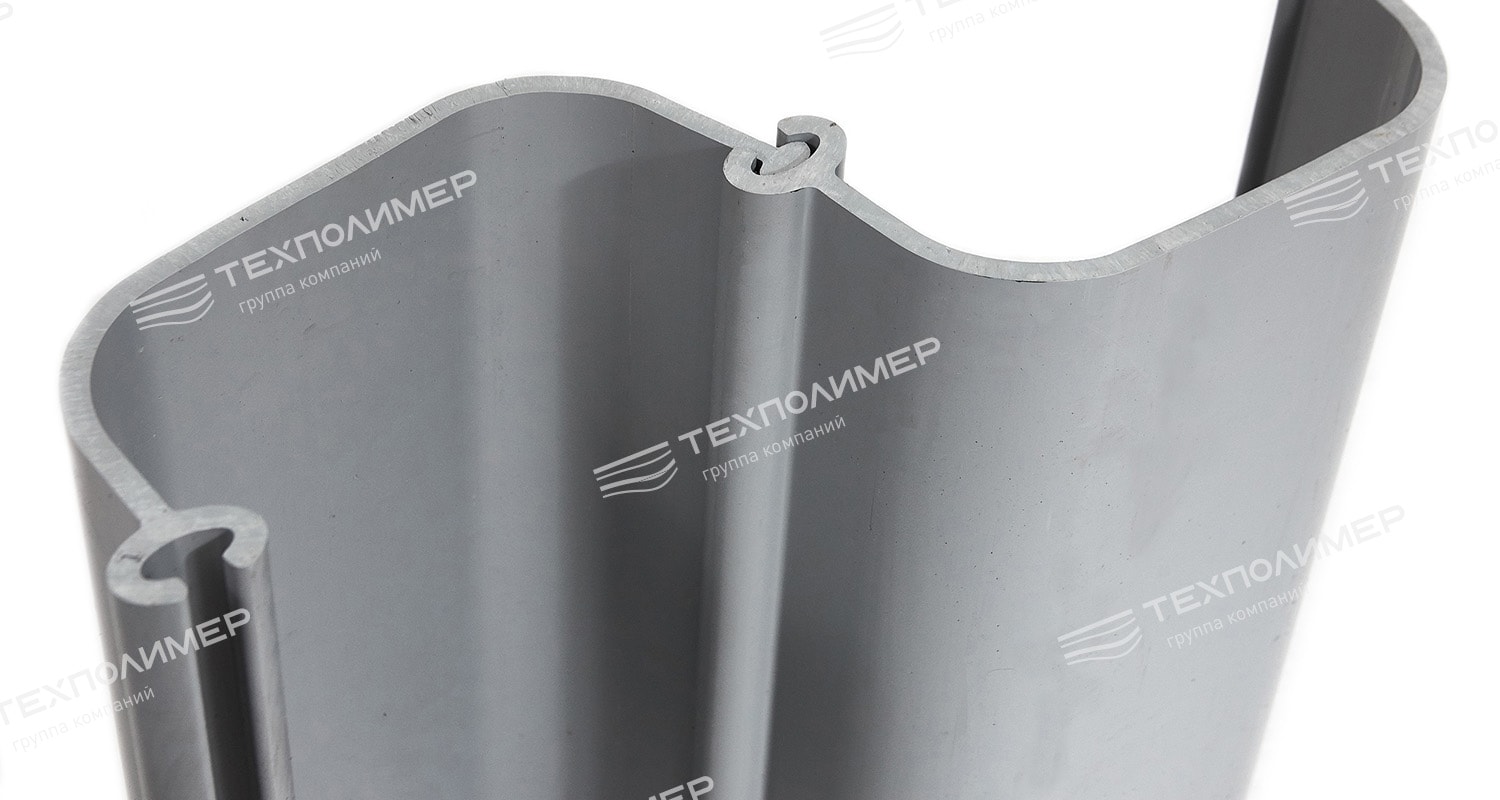

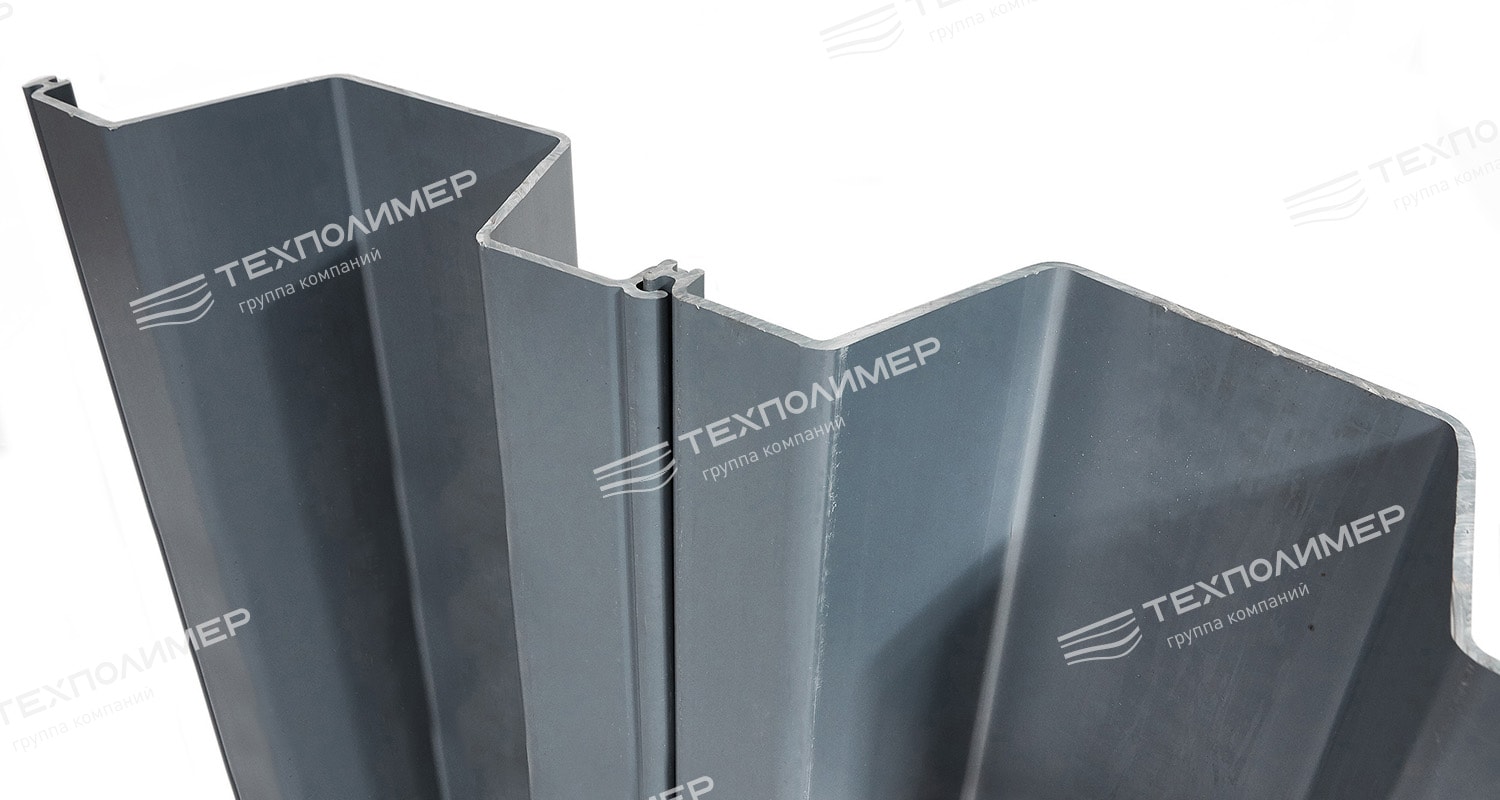

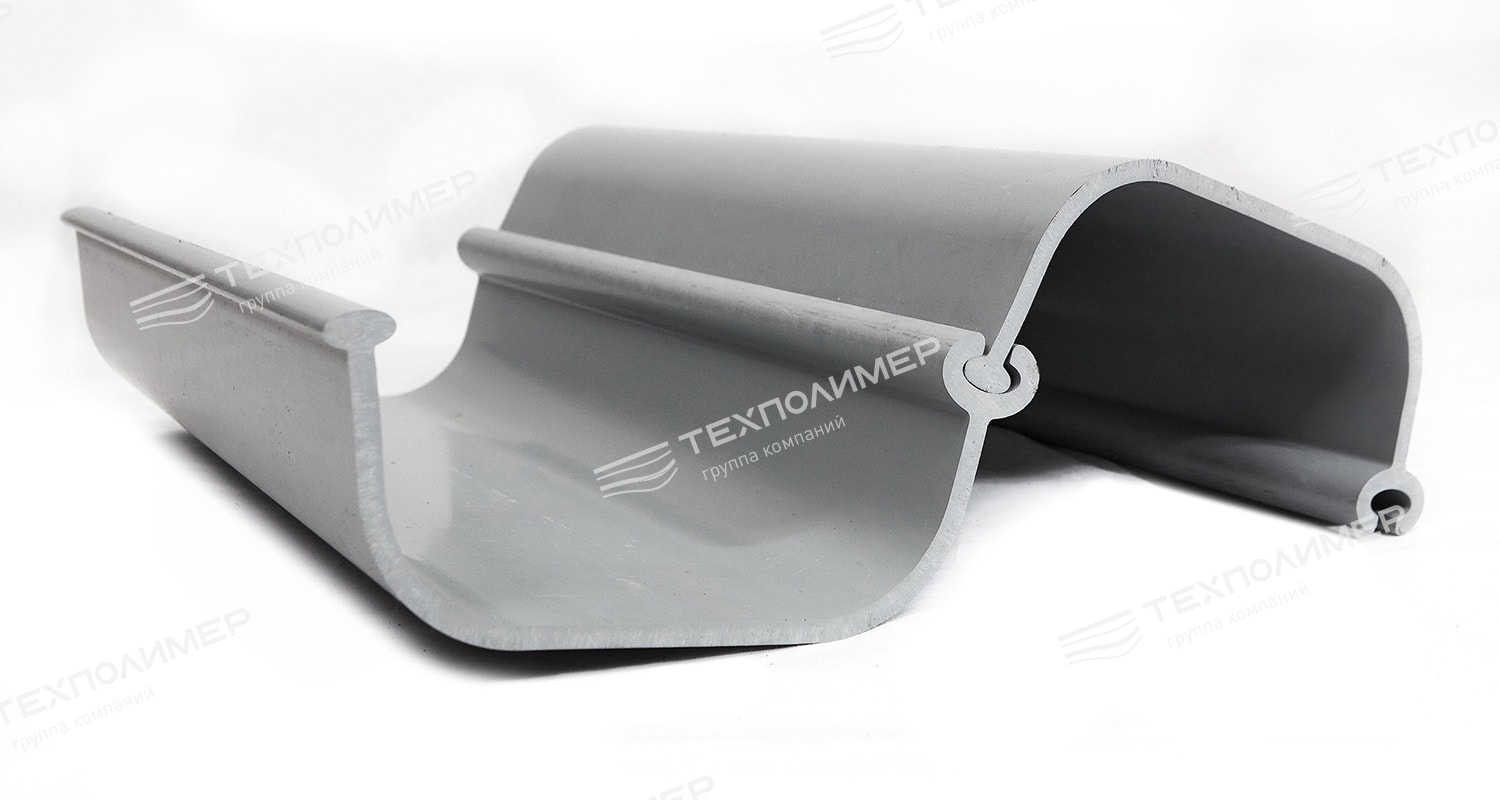

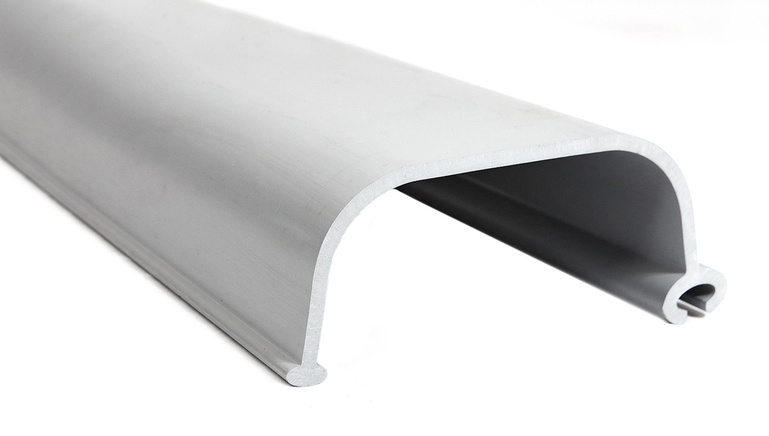

Profiled PVC sheet piling with interlocks that vertically connect adjacent profiles to create a “wall in the ground”.

View the material’s physical and mechanical properties

Geosheet Pile

Larsen sheet piles have been used as cut-off walls for more than 100 years — metal profiles in the form of troughs with grooves or interlocks. This solution has several disadvantages: high cost, complex installation and susceptibility to corrosion.

We offer a modern alternative — PVC sheet piles (geosheet piles). They are resistant to rust, rot, ultraviolet radiation, chemicals, high and low temperatures, cost less and weigh several times less than metal profiles.

We supply plastic sheet piles in grades SP200, SP250 and SP600 with widths of 200, 250 and 600 mm.

Advantages of geosheet piles

Cost-effectiveness compared with steel
Low weight and easy installation
High load-bearing capacity
Ability to form curves
Environmental safety
Durability

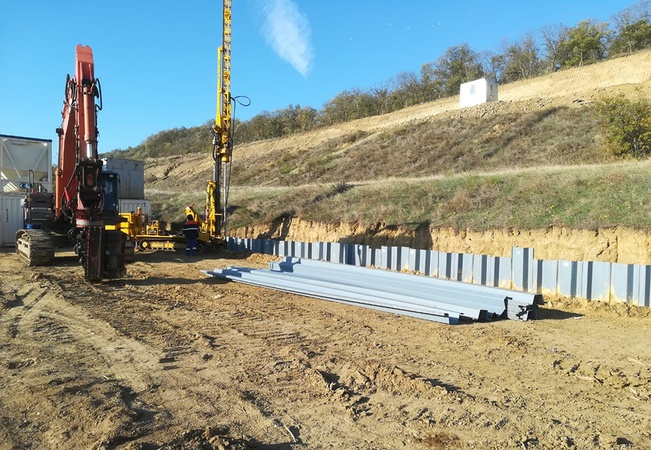

PVC sheet piling generates less friction, which significantly simplifies installation on site, while the material’s aesthetic appearance allows it to be used without concealment in any area.

Applications

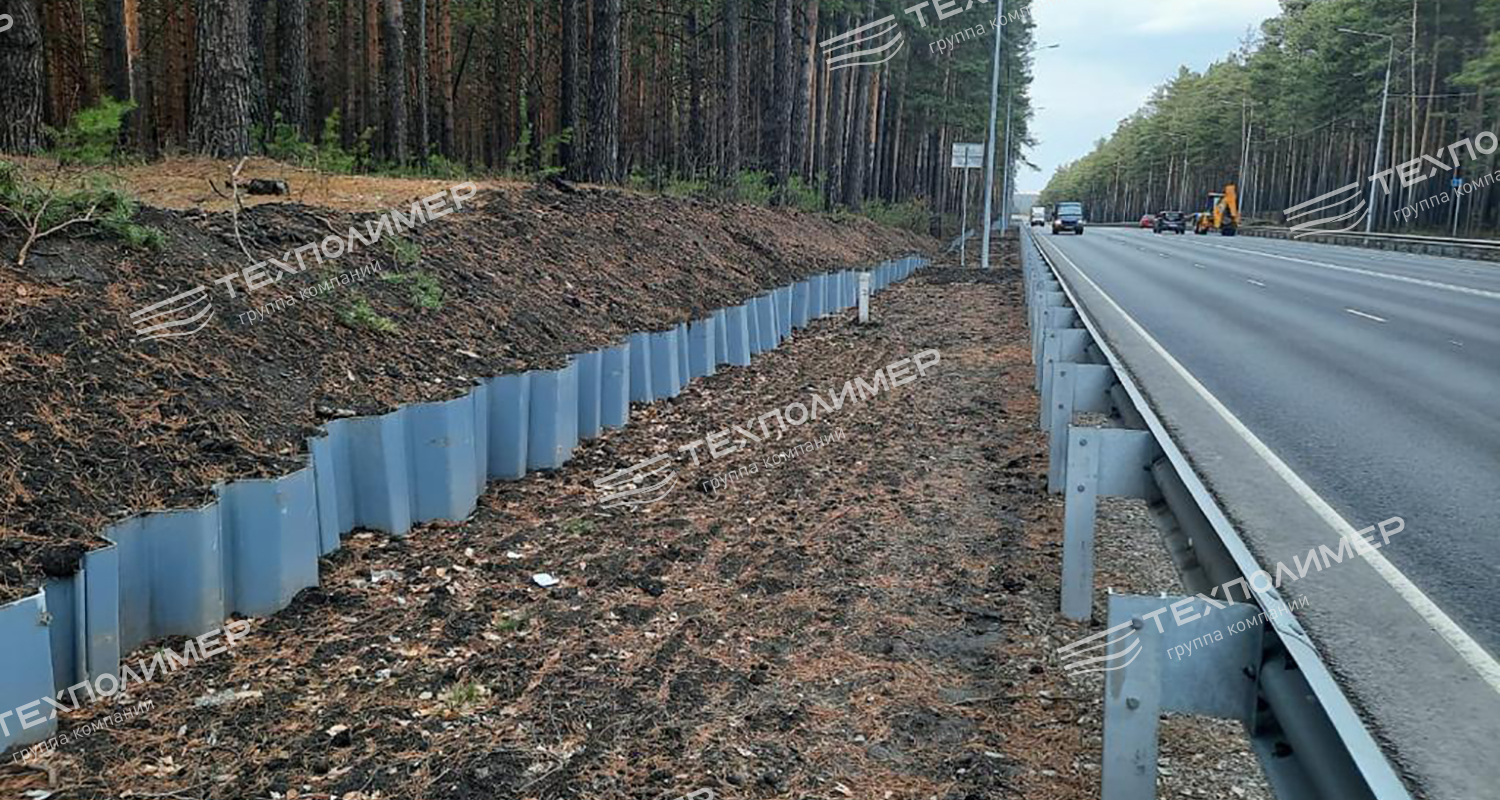

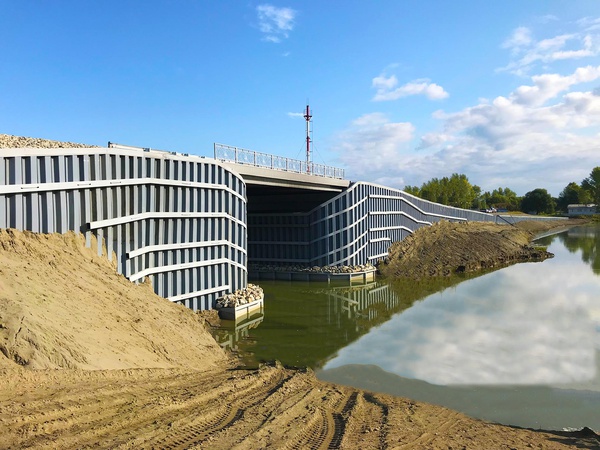

Geosynthetic sheet piling is used in hydraulic engineering, road, railway and underground construction in mildly aggressive and soil environments at air temperatures from minus 60 °C to plus 60 °C.

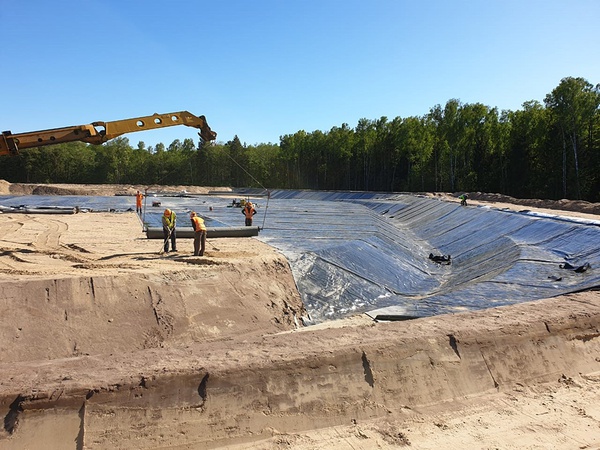

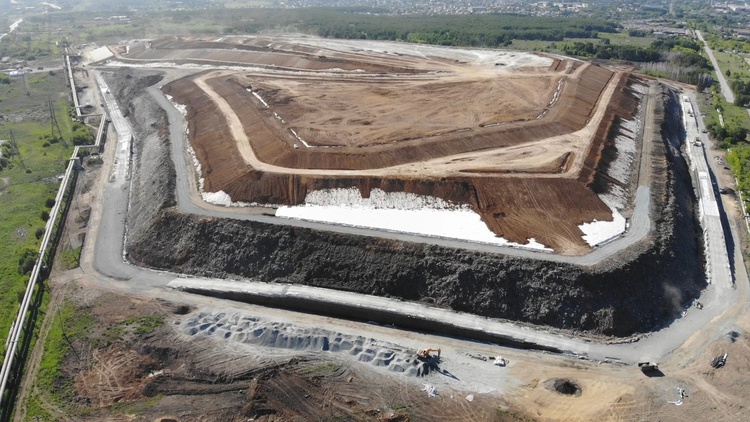

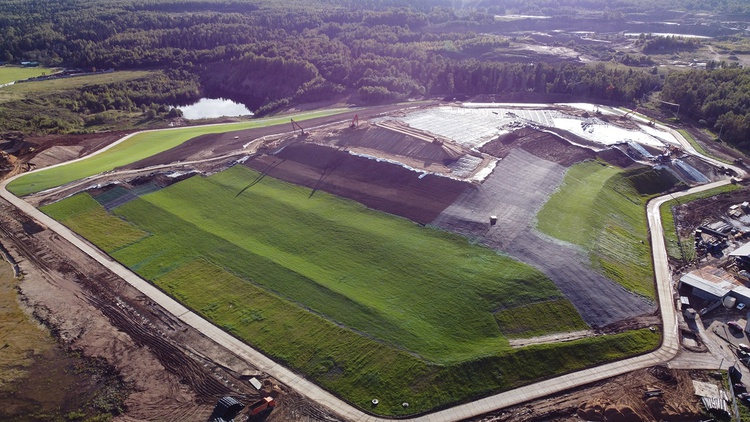

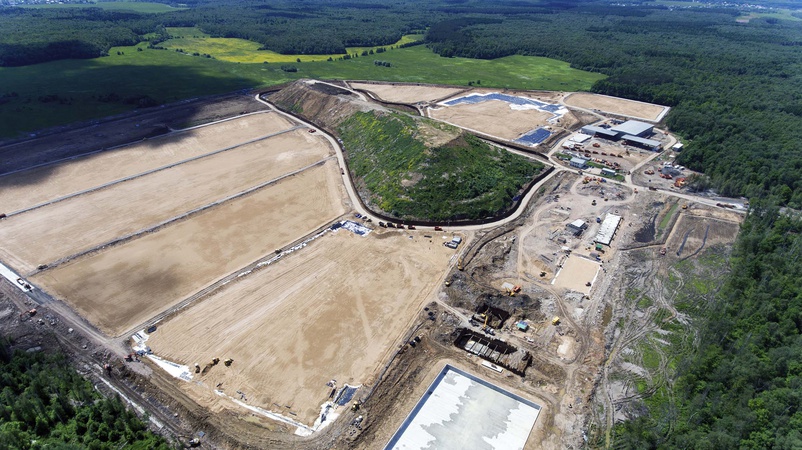

Municipal solid waste and industrial waste landfills
“Diaphragm walls”
Sludge storage facilities
Fencing for industrial sites
Storage tanks for hazardous liquids
Dams and reservoirs
Flood protection measures
Reclamation of contaminated land

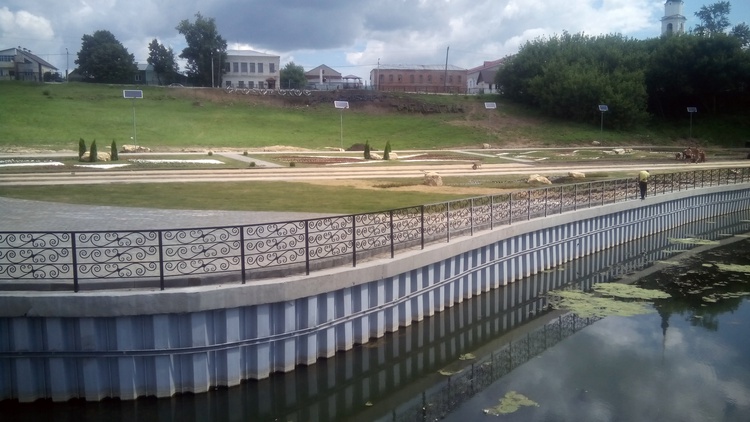

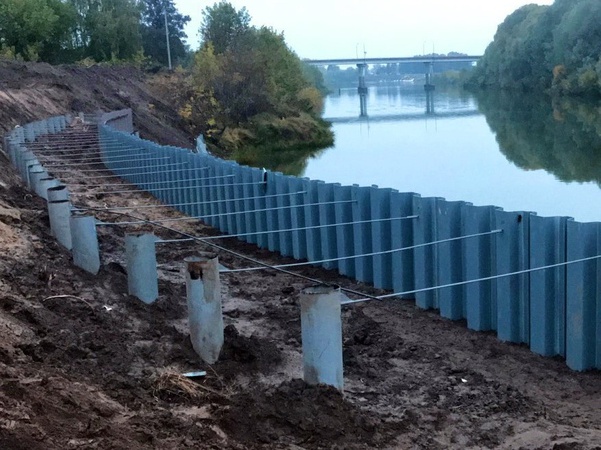

Bank protection

Connecting sheet piles in an interlock to form a rigid channel is used for laying main cables.

Technical specifications of “Geoshpunt”, STO 56910145-011-2015
Parameter	SP 200	SP 250	SP 600
Tensile strength, MPa, not less than	30	30	30
Allowable moment, kN-m/linear m, not more than	9,2	20,3	19,2
Section modulus, cm³/linear m, not less than	370	810	770
Moment of inertia, cm⁴/linear m, not less than	2590	8370	7600
Tensile modulus of elasticity, MPa	2500
Thermal conductivity, W/m*K	0,19
Operating temperature, °C	from -40 to +80
Thickness, mm	6,0	9,0
Depth, mm	70,0	118,5	182
Length/width, m/mm	10/200	15/250	18/600
Weight, m², kg	15,3	24,7	23,0
Material	PVC	PVC	PVC

Buy PVC sheet piles from the manufacturer

«TECHPOLYMER» — a leading manufacturer of geosheet piling in Russia. We have been operating since 1994 and supply materials to leading companies, including "Rosneft", "Gazprom", "Rosatom", "Russian Railways" and others. We handle the entire scope of work — from design to installation and commissioning.

We will calculate the price of PVC sheet piling of the grade you require. We ship products in any volume throughout Russia and beyond.
