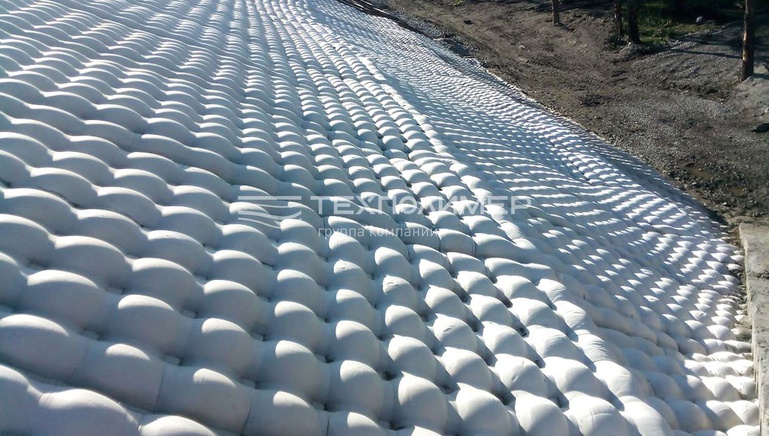

The «ТЕХПОЛИМЕР» concrete-filled mat is a closed envelope with fixing points throughout the sheet. These points reduce the hydraulic pressure of the injected mixture and regulate the mat thickness after filling.
Operating principle:
- A liquid injection mixture based on mineral binders is injected under pressure into the concrete-filled mat
- Excess moisture and air are discharged through the fabric pores, ensuring uniform filling of the mat envelope
- Water drainage ensures high mixture density and accelerated hardening
- Relatively low weight and easy transportation to hard-to-reach areas
- Installation below the waterline without prior dewatering
- Installation with minimal use of construction equipment and labour
- Use on steep slopes and the ability to follow the contours of the underlying surface
- Environmental safety and resistance to acids, alkalis, fuels and lubricants, organic solvents and microorganisms
- A finished aesthetic appearance
- Strengthening the bottom of berths
- Strengthening river and canal beds
- Protection of underwater pipelines
- Flood protection
- Erosion protection for steep slopes
- Strengthening bridge and overpass embankment cones and slopes

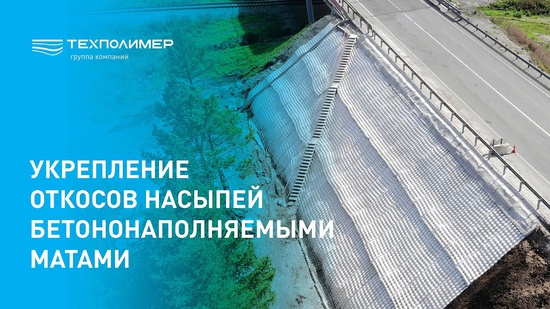

- Strengthening slopes of roads and railways
1. Versatile applications. Concrete-filled mats protect pipelines, dams, embankments, waterbody beds, cable routes, flood protection structures, channels, drains, bridge supports, road slopes and banks from moisture and unstable soil.
2. Flexible shape. Mats easily conform to the shape of the surface being protected, eliminating the need for additional bending elements during installation.
3. Close contact with the soil. Another benefit of the concrete-filled mat's flexible shape is its close contact with the soil, which provides reliable protection against erosion.
4. Long service life. The woven textile fabric from which the mats are made is not susceptible to corrosion caused by external factors or chemical agents.
5. Easy installation. Concrete-filled mats are laid directly on the soil without the use of special equipment.
| Technical specifications of the seamless sheet | ||
| Tensile strength, kN/m, not less than | 100 | |
| Surface density, g/m² | 280 | |
| Resistance to ultraviolet radiation, not less than, % | 90 | |
| Chemical resistance to aggressive media, not less than, % | 80 | |
| Frost resistance, not less than, % | 90 | |
| Technical specifications of the concrete-filled mat, STO 56910145-031-2020 | ||
| Indicator | BNM 1 0,16 | BNM 1 0,2 |
| Mat thickness, mm | 160 | 200 |
| Volume of injection mixture per 1 | 0,083 | 0,125 |
| Weight, kg per 1 m3/m2 | 167 | 250 |
Buy «ТЕХПОЛИМЕР» concrete-filled mats
"TECHPOLYMER" — a leading manufacturer of geomembranes in Russia. We have been operating since 1994 and supply materials to leading companies, including Rosneft, Gazprom, Rosatom, Russian Railways and others. We handle the full range of work — from design to installation and commissioning.
The price of a concrete-filled mat depends on the product brand and supply volume. We ship products in any quantity throughout Russia and beyond.
