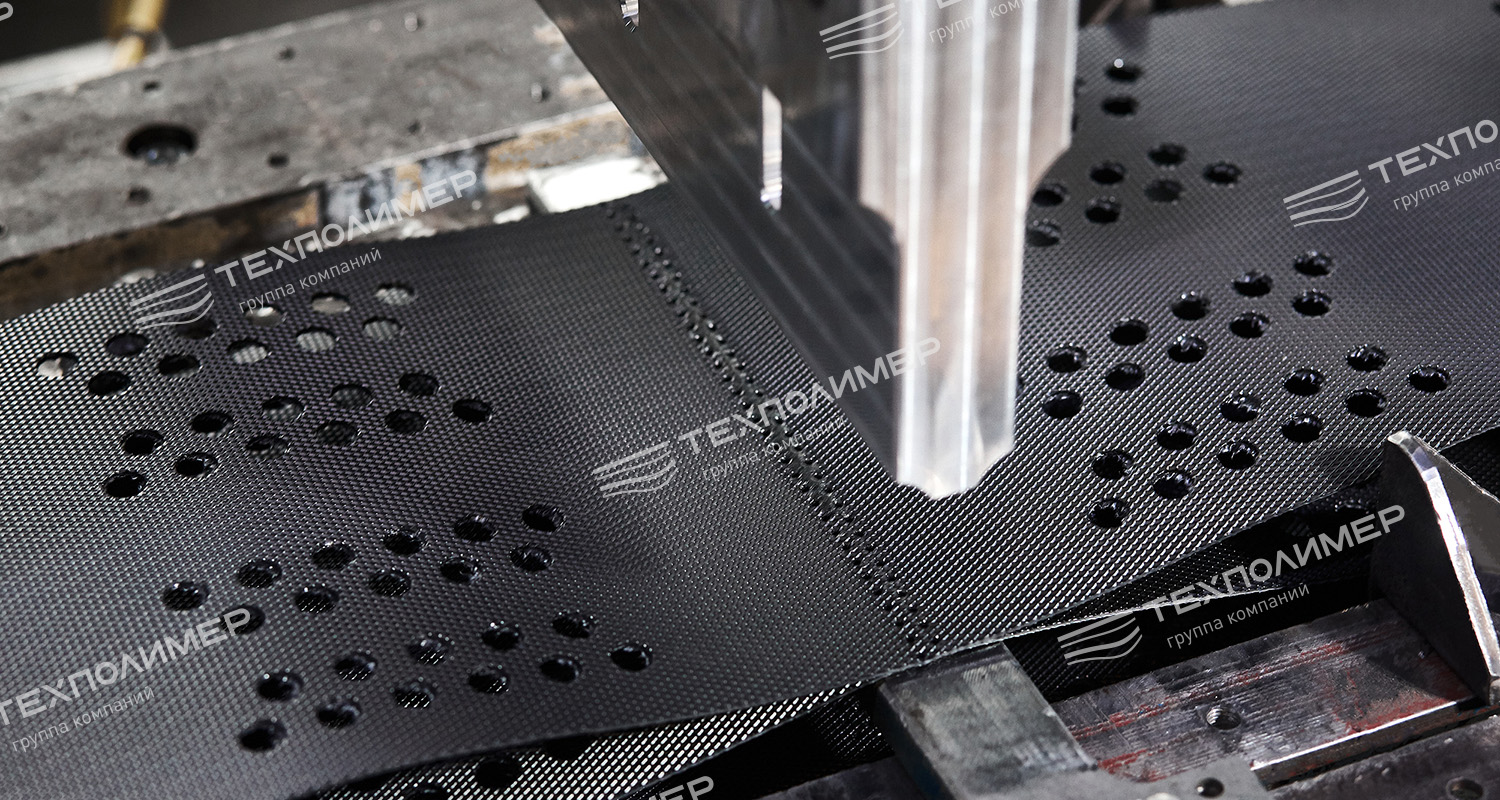

Three-dimensional synthetic geogrid consisting of polymer strips joined in a staggered pattern by ultrasonic welding.

View the material’s physical and mechanical properties

Geocell

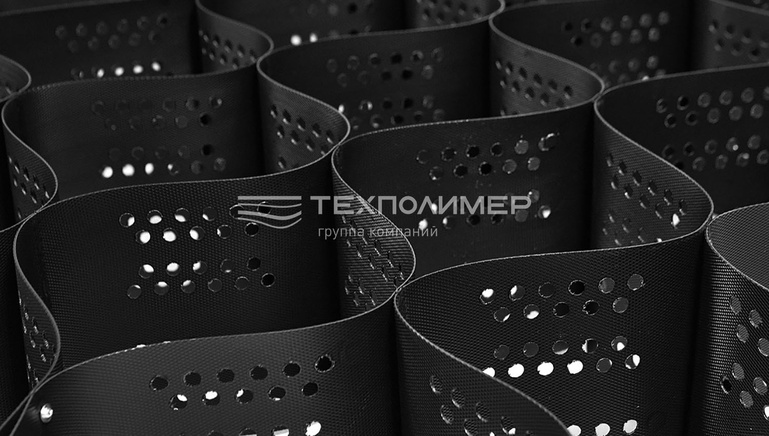

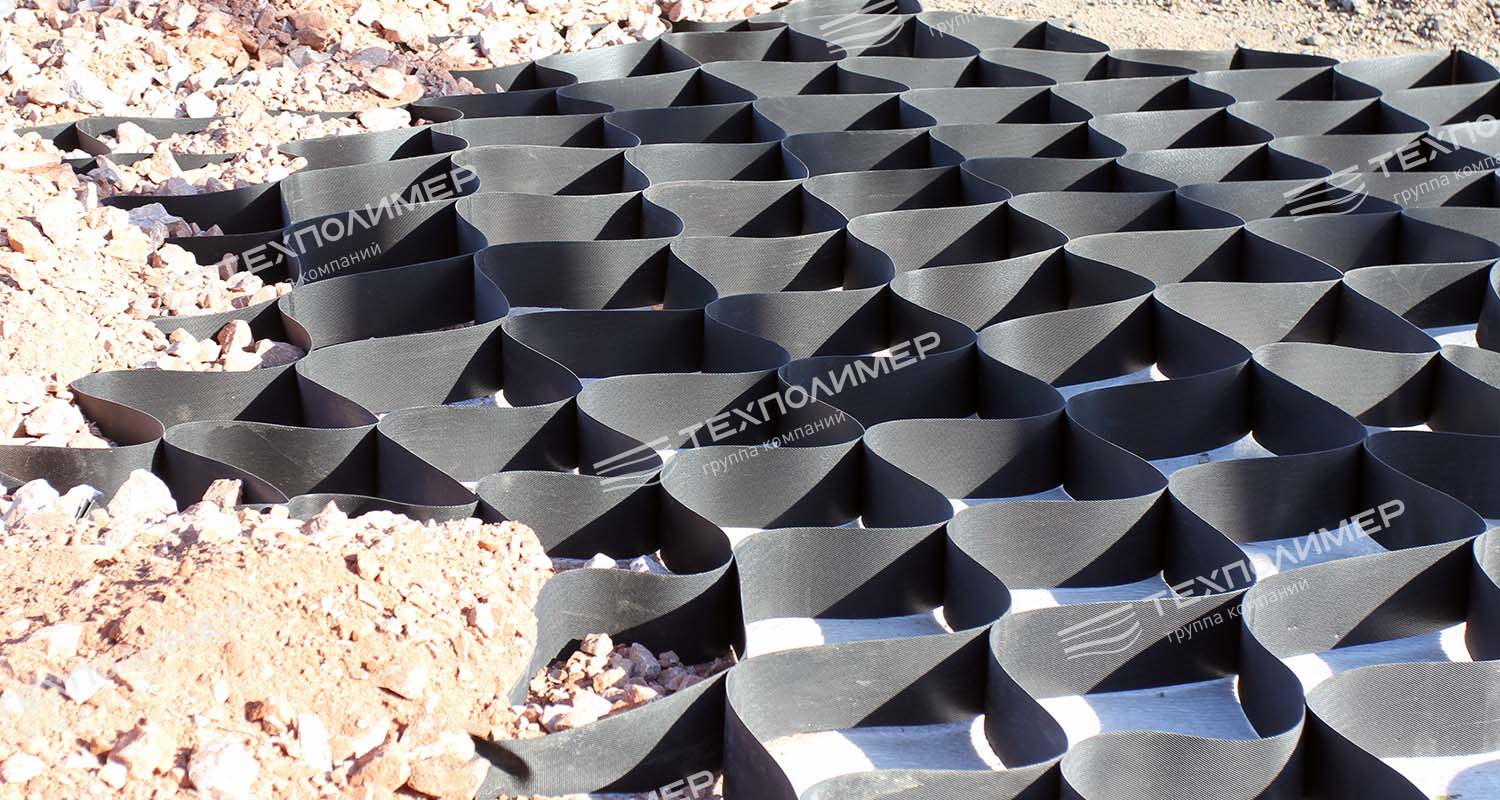

A geocell is a honeycomb structure made of polymer strips bonded together in a staggered pattern using ultrasonic welding. When expanded, it forms a three-dimensional cellular structure designed to contain infill materials (soil, sand, crushed stone, etc.).

We supply material with high corrosion resistance, low susceptibility to damage and a service life of 50 years or more. We handle the entire range of works — from design to installation and commissioning.

Advantages

Complies with GOST R 56338-2015
Higher load-bearing capacity due to consolidation of backfill soil
Seam strength of at least 85% of the strip strength
Improves the drainage properties of backfill soil
Increases resistance to dynamic loads
Reduces construction costs and increases structural reliability
Does not require complex road construction equipment
Low susceptibility to damage
High anti-corrosion properties
Service life of up to 50 years
Operating temperature range from minus 60 °С to plus 60 °С

Applications

Reinforcement of road embankments in road construction
Reinforcement of the sub-ballast layer of railway embankments

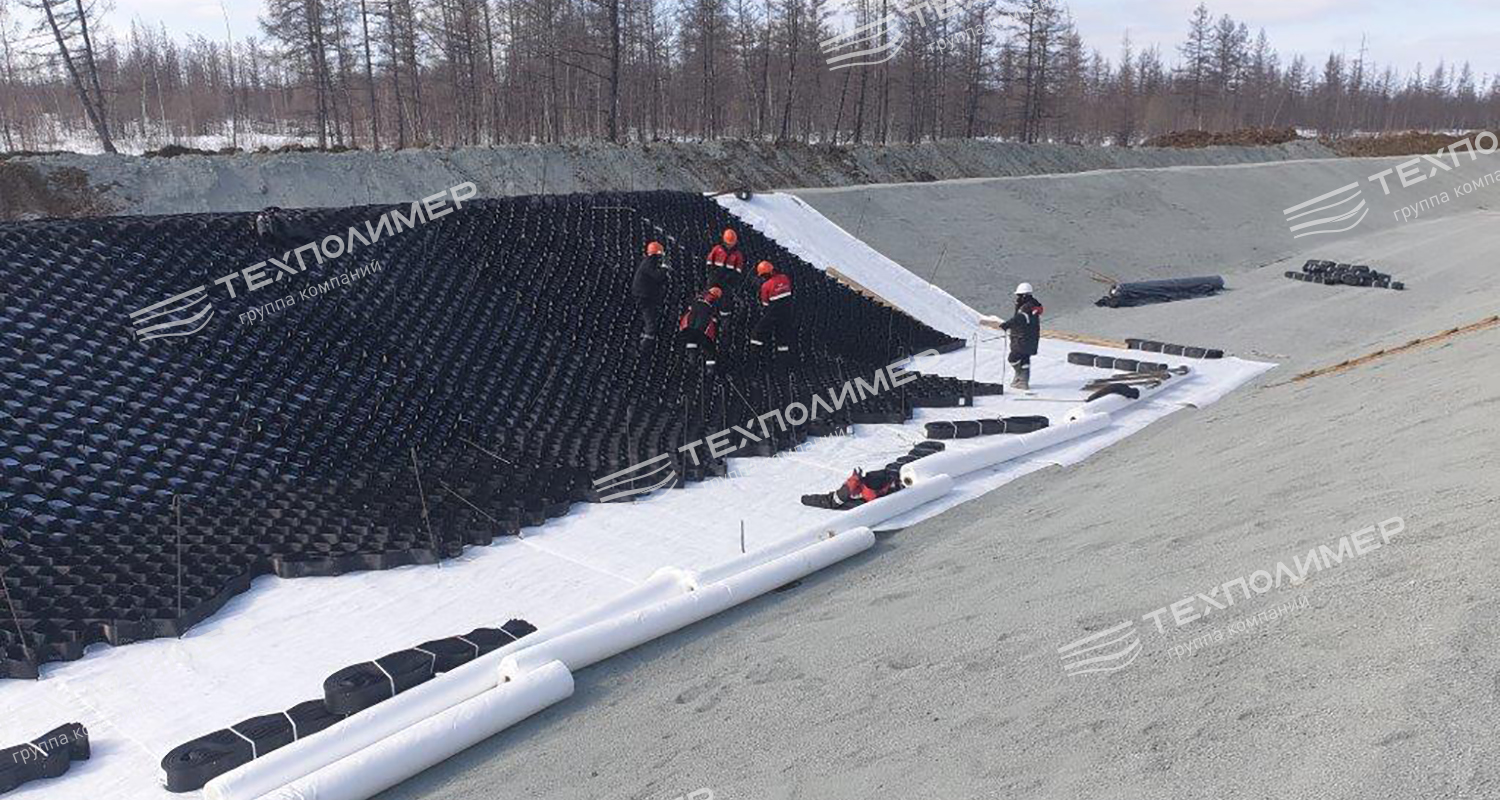

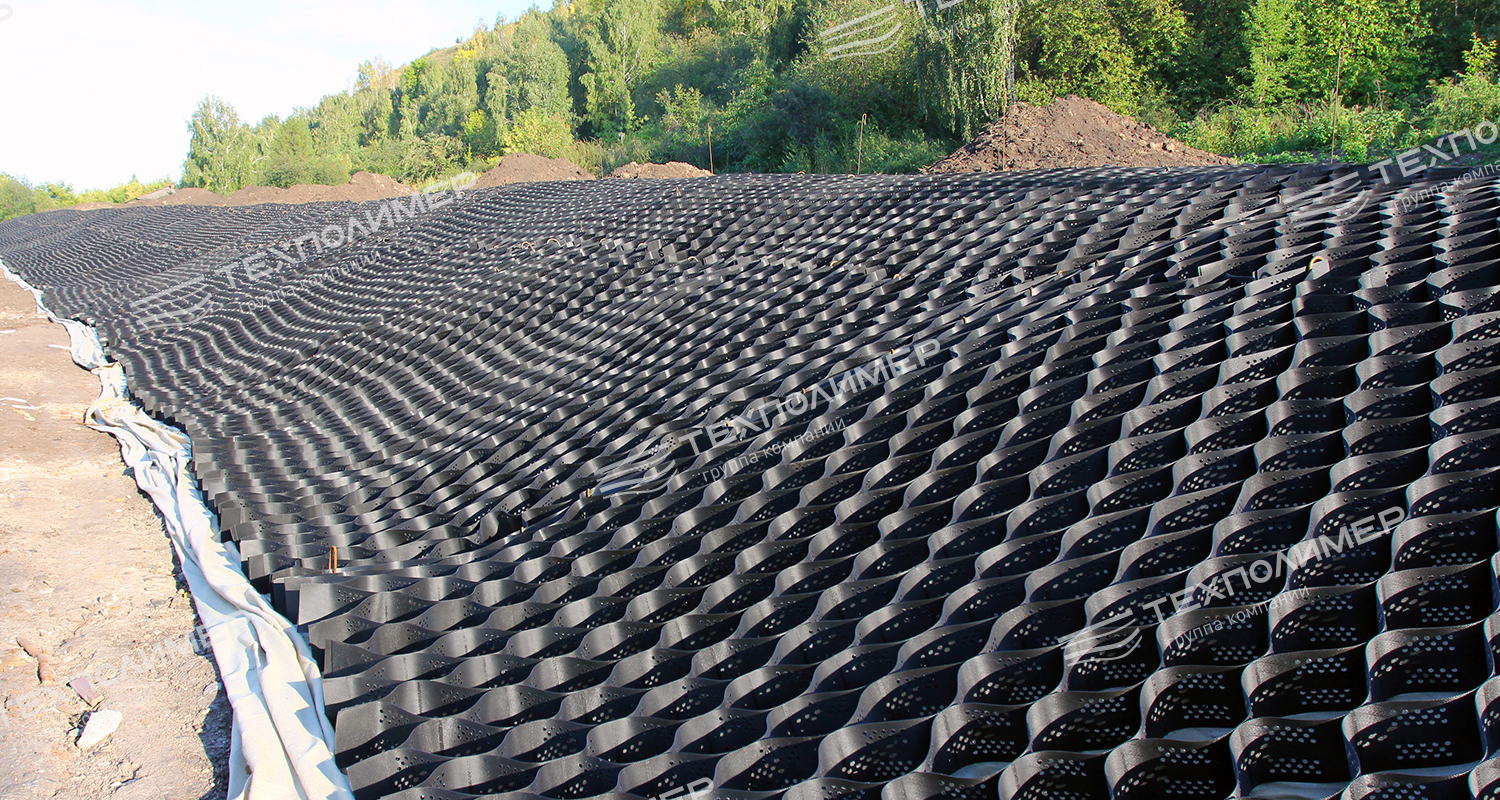

Stabilisation of highway slopes and securing of steep slopes
Strengthening of weak foundations
Anti-erosion and seismic protection of slopes and cones at overhead crossings of oil and gas pipelines
Stabilisation of railway track cone slopes
Construction of winter roads
Replacement of log matting
Strengthening of surface drainage structures
Strengthening of the banks of water bodies and watercourses
Construction of retaining walls
Elimination of erosion and washout areas
Landscaping and lawn greening works

5 Reasons to Buy a 3D Geogrid

1. Versatile application. The geogrid secures the fill material when reinforcing the slopes of an embankment. The fill material may consist of soil, sand, crushed stone, concrete and other materials.
2. Flexible material. Polymer sheets follow the surface profile, providing a drainage channel when reinforcing a slope.
3. Increased soil bearing capacity. The geogrid cells and fill material form a single structure, increasing the soil's bearing capacity and preventing the fill material from moving.
4. Cost savings. A three-dimensional geogrid —is one of the most affordable methods of slope reinforcement in terms of material and installation costs.
5. Easy installation. Road construction equipment is not required to install a three-dimensional geogrid.

Technical characteristics of the volumetric geogrid, СТО 56910145-002-2011^*
Parameter	Value
Tensile strength of the strip, minimum, kN/m	20
Elongation of the strip at maximum load, maximum, %	35
Frost resistance (30 cycles), minimum, %	90
Resistance to cyclic loads, minimum, %	90
Resistance to aggressive environments, minimum, %	90
Seam strength as a percentage of strip tensile strength, minimum, % pull-off shear	80 85
Nominal seam strength (seam strength multiplied by the number of seams per 1 linear metre of geogrid), minimum, kN/m	for a module with a cell diagonal size, mm
	up to 260	260-400	over 400
	45	25	20
* The material is also manufactured according to ТУ 2246-002-56910145-2011 and complies with the requirements of ПАО «Газпром». Certified by СДС ИНТЕРГАЗСЕРТ. Complies with ГОСТ Р 56338-2015.

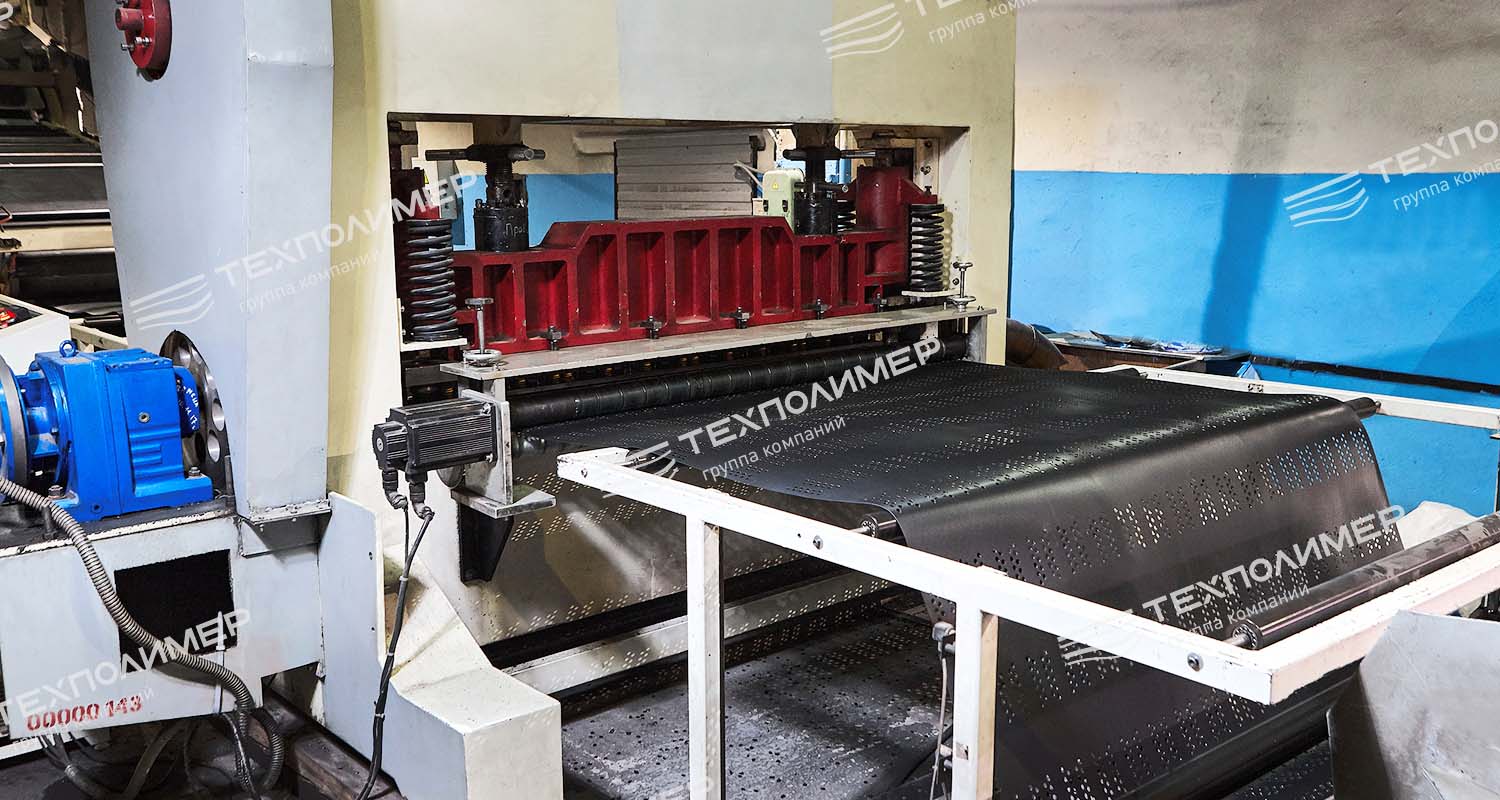

Three-dimensional geogrid from the manufacturer

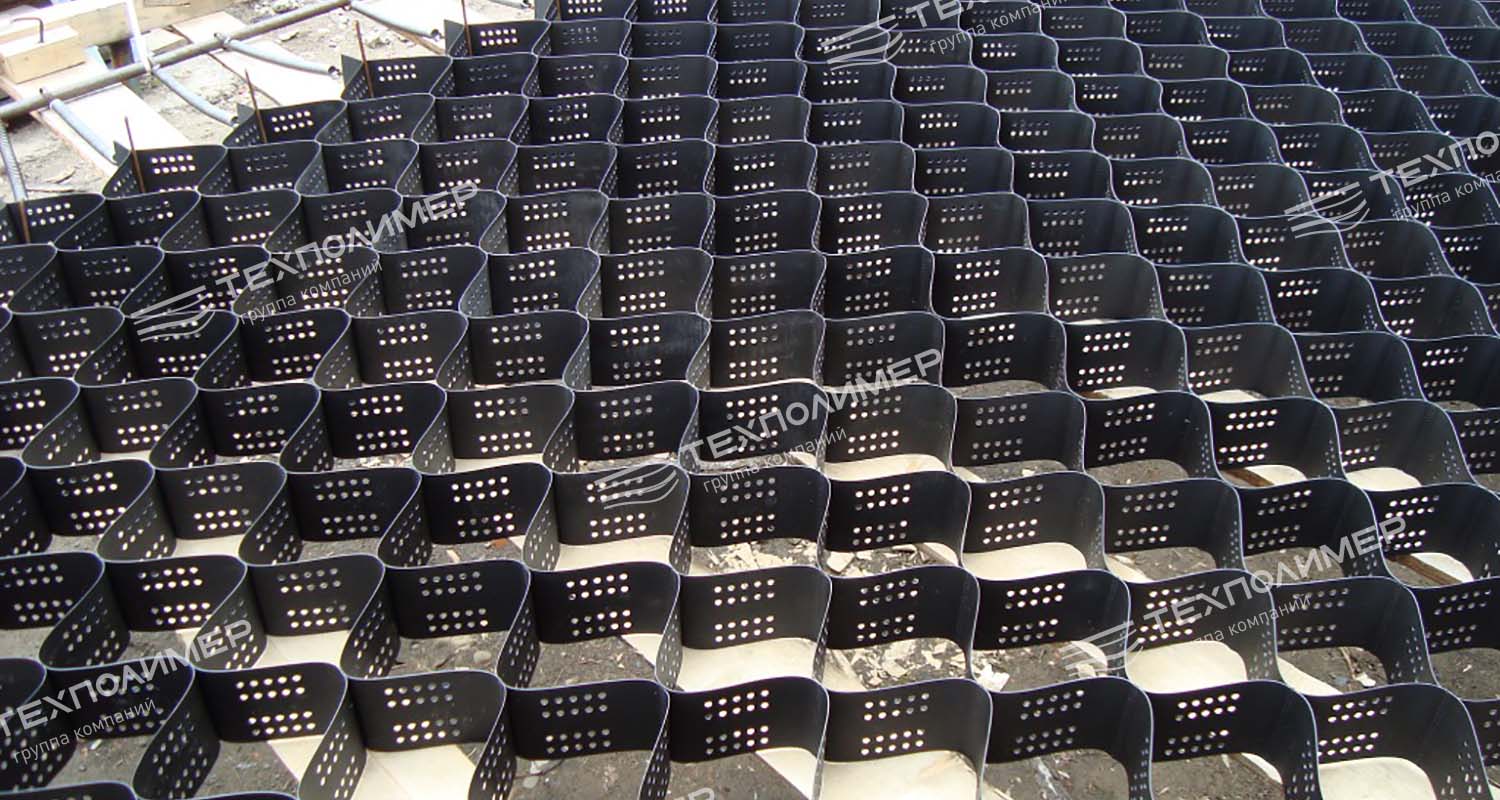

We supply the «ТЕХПОЛИМЕР» geogrid in various heights (from 50 to 200 mm) and cell sizes (from 115*115 to 300*300 mm). We produce volumetric geogrids with perforation and in the conventional version; by agreement with the customer, we manufacture materials in non-standard sizes.

The price of a volumetric geogrid depends on its type, size and supply volume. We ship products in any volume throughout Russia and beyond its borders.
