ГОСТ 18599-2001
PE 100 high-density polyethylene (HDPE) pressure pipes are designed for potable water supply systems with a nominal pressure of up to 2.5 MPa.

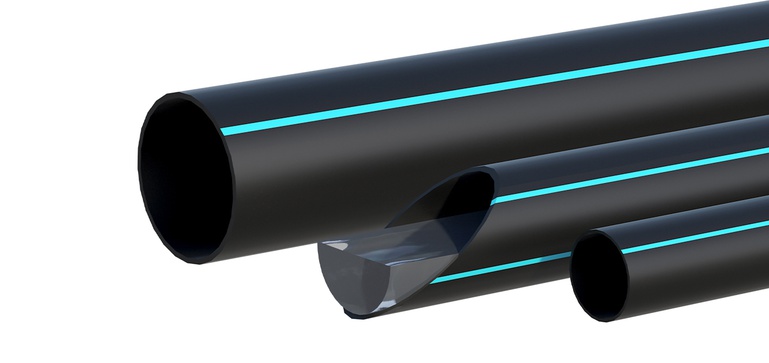

Polyethylene pressure pipes
Pressure pipes are products manufactured from low-pressure polyethylene using composite extrusion. Polymer products are an excellent alternative to metal and other equivalents, outperforming them in most performance characteristics.
Advantages
- Corrosion resistance
- Guaranteed service life of at least 50 years (when used in cold water supply and sewerage networks in accordance with GOST 18599-2001)
- Sanitary, hygienic and environmental safety
- Low roughness coefficient and low rate of pipe scaling
- High resistance to hydroabrasive wear
- High chemical resistance; resistance to water hammer; resistance to stray currents (non-conductive)
- Ease of installation. Plastic pipes are lightweight, easy to cut and have several connection options, making it possible to work with them without special skills
- Easy transportation
- Strength of welded joints exceeding the strength of the pipes themselves
- High repairability; flexibility—preservation of pipe integrity at low temperatures and when ice plugs form, as well as in the event of building settlement.
Applications
- Installation and repair of pressurised water pipelines carrying drinking and domestic water
- For pressurised transport of any liquids that do not react with polyethylene
- Installation of pressurised sewer networks
- Use as a protective screen when installing cable, telephone and fibre-optic networks
- For hydraulic transport of sand, slurry and other process mixtures
| Polyethylene Grade | SDR41 | SDR33 | SDR26 | SDR21 | SDR17.6 | SDR17 | SDR13.6 | SDR11 | SDR9 |
| Nominal Pressure, 105 Па(бар) | |||||||||
| ПЭ100 | PN4 | PN5 | PN6.3 | PN8 | PN9.5 | PN10 | PN12.5 | PN16 | PN20 |
| Diameter d, мм | Толщина стенки, мм | ||||||||
| 90 | 2,2 | 2,8 | 3,5 | 4,3 | 5,1 | 5,4 | 6,7 | 8,2 | 10,1 |
| 110 | 2,7 | 3,4 | 4,2 | 5,3 | 6,3 | 6,6 | 8,1 | 10 | 12,3 |
| 160 | 4 | 4,9 | 6,2 | 7,7 | 9,1 | 9,5 | 11,8 | 14,6 | 17,9 |
| 225 | 5,5 | 6,9 | 8,6 | 10,8 | 12,8 | 13,4 | 16,6 | 20,5 | 25,2 |
| 280 | 6,9 | 8,6 | 10,7 | 13,4 | 15,9 | 16,6 | 20,6 | 25,4 | 31,3 |
| 315 | 7,7 | 9,7 | 12,1 | 15 | 17,9 | 18,7 | 23,2 | 28,6 | 35,2 |
| 355 | 8,7 | 10,9 | 13,6 | 16,9 | 20,1 | 21,1 | 26,1 | 32,2 | 39,7 |
| 400 | 9,8 | 12,3 | 15,3 | 19,1 | 22,7 | 23,7 | 29,4 | 36,3 | 44,7 |
| 500 | 12,3 | 15,3 | 19,1 | 23,9 | 28,3 | 29,7 | 36,8 | 45,4 | 55,8 |
| 630 | 15,4 | 19,3 | 24,1 | 30 | 35,7 | 37,4 | 46,3 | 57,2 | 70,3 |
Order polyethylene pressure pipes for potable water supply.
TECHPOLYMER manufactures polyethylene pipes in a wide range of diameters, from 90 to 630 mm. Polyethylene pipes are widely used in water supply systems, automatic irrigation systems, swimming pool installations, artesian wells, and other applications.
The quality of our pipes complies with the requirements of GOST 18599-2001, currently in force in Russia. We supply products in any volume throughout Russia and internationally.
-

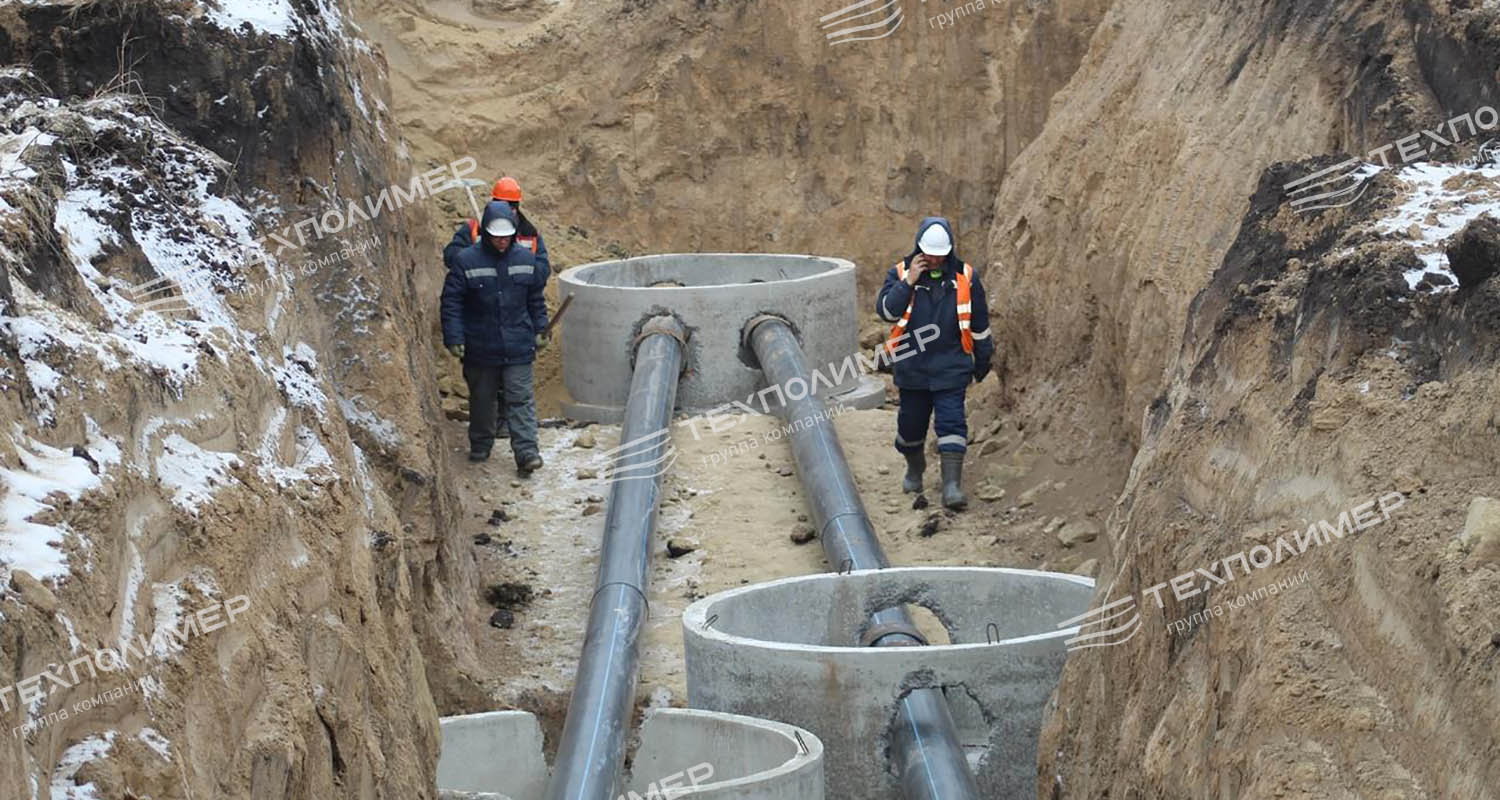

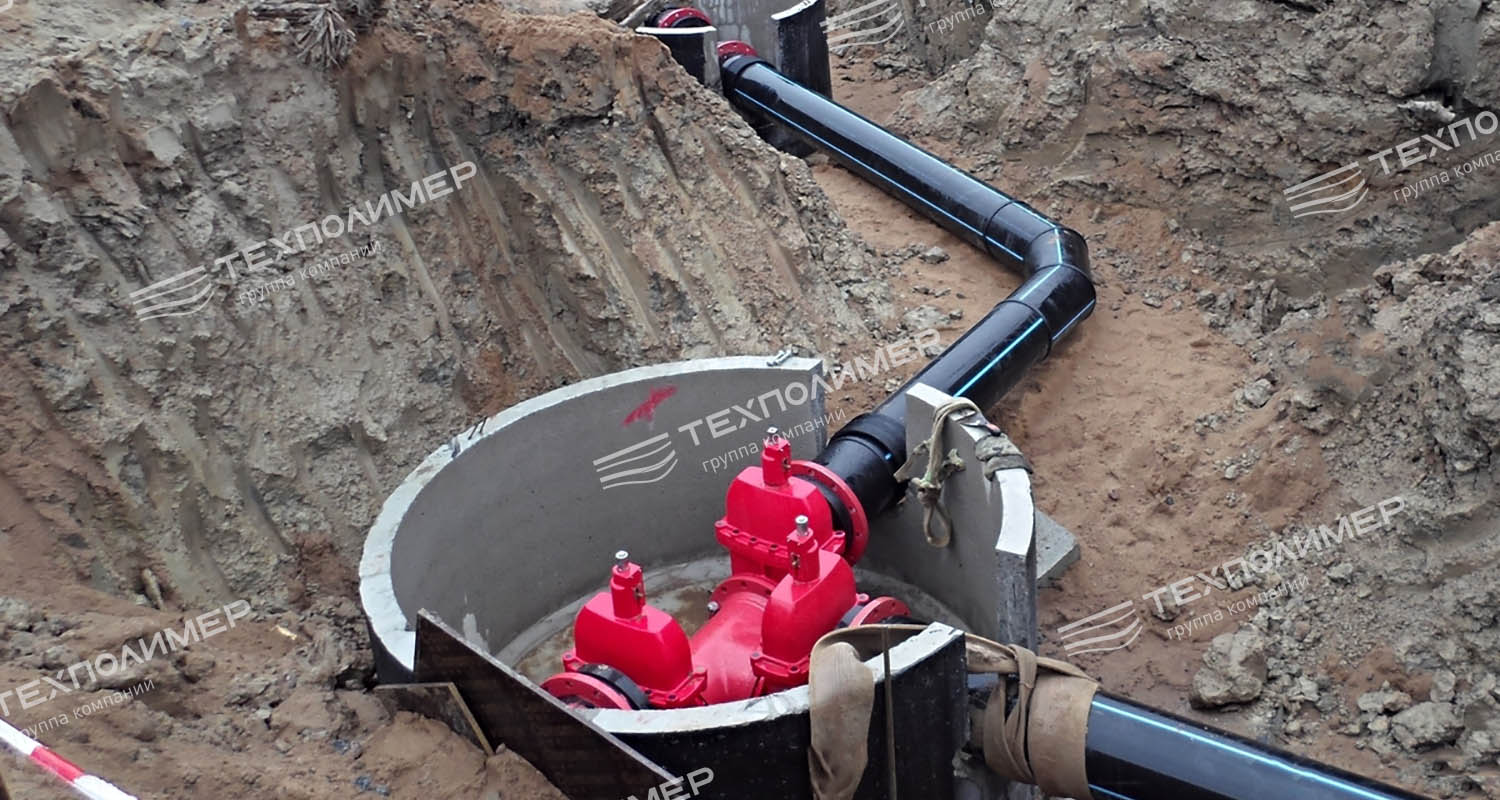

Gallery
-
