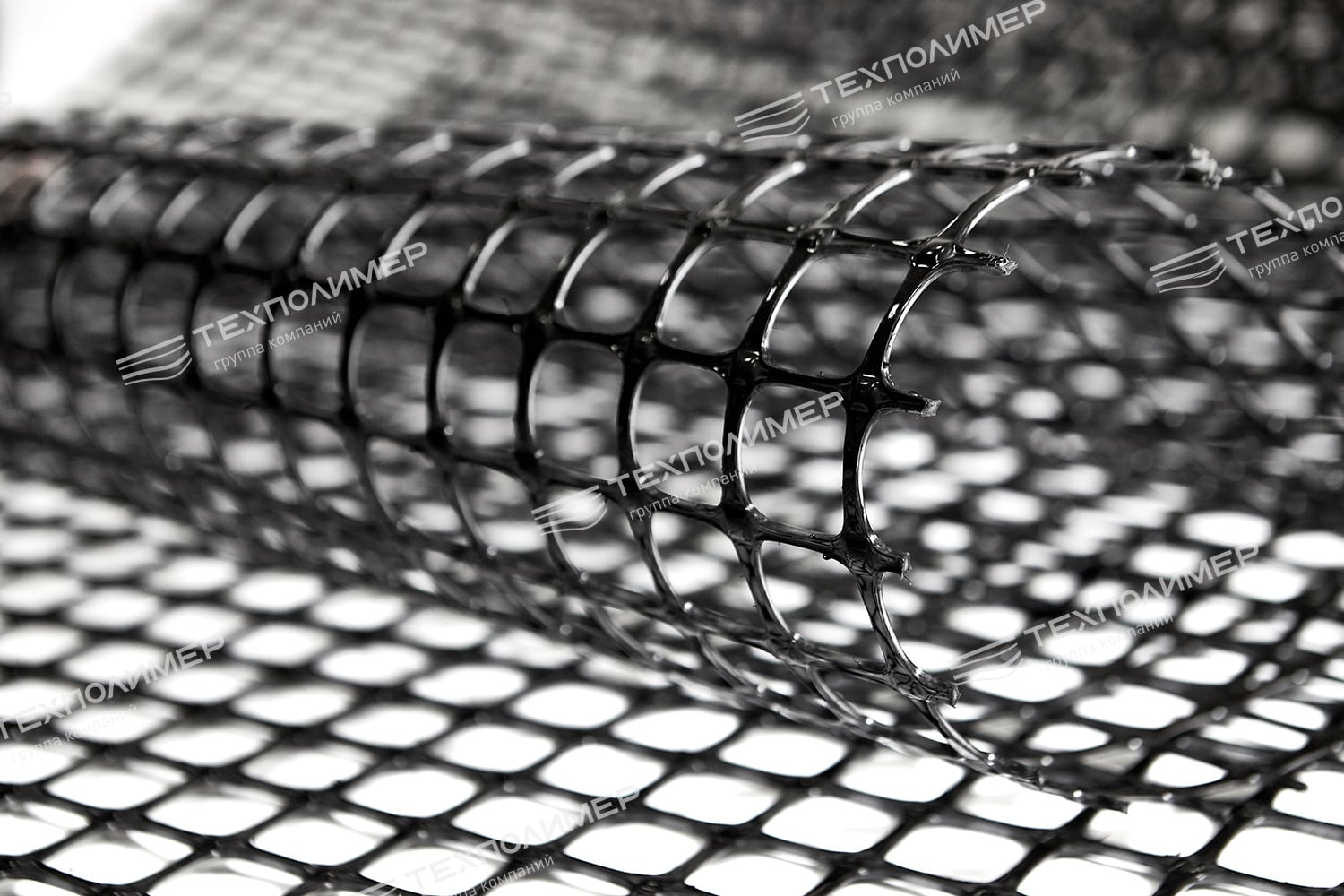

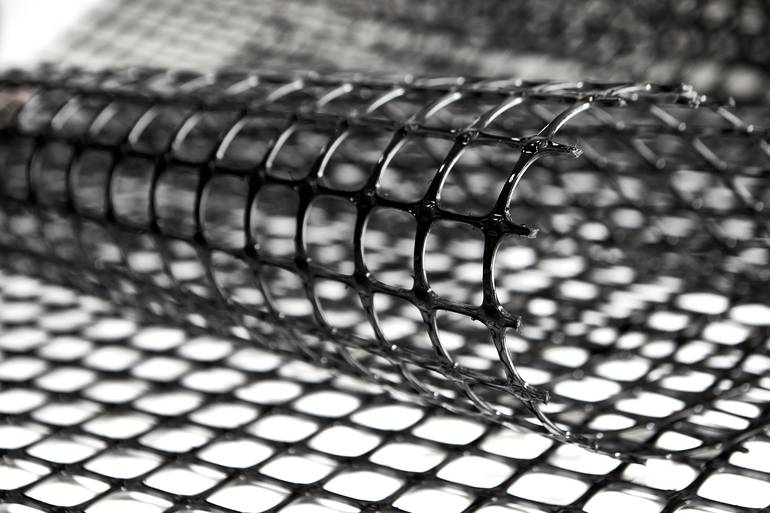

SD geogrid is a flat polymer material with rigid junctions, tensile strength from 20 to 50 kN/m and elongation at break of up to 20%.
The flat biaxial geogrid (oriented in the longitudinal and transverse directions) is manufactured from polyolefins with light-stabilising and frost-resistant additives using extrusion followed by biaxial orientation.

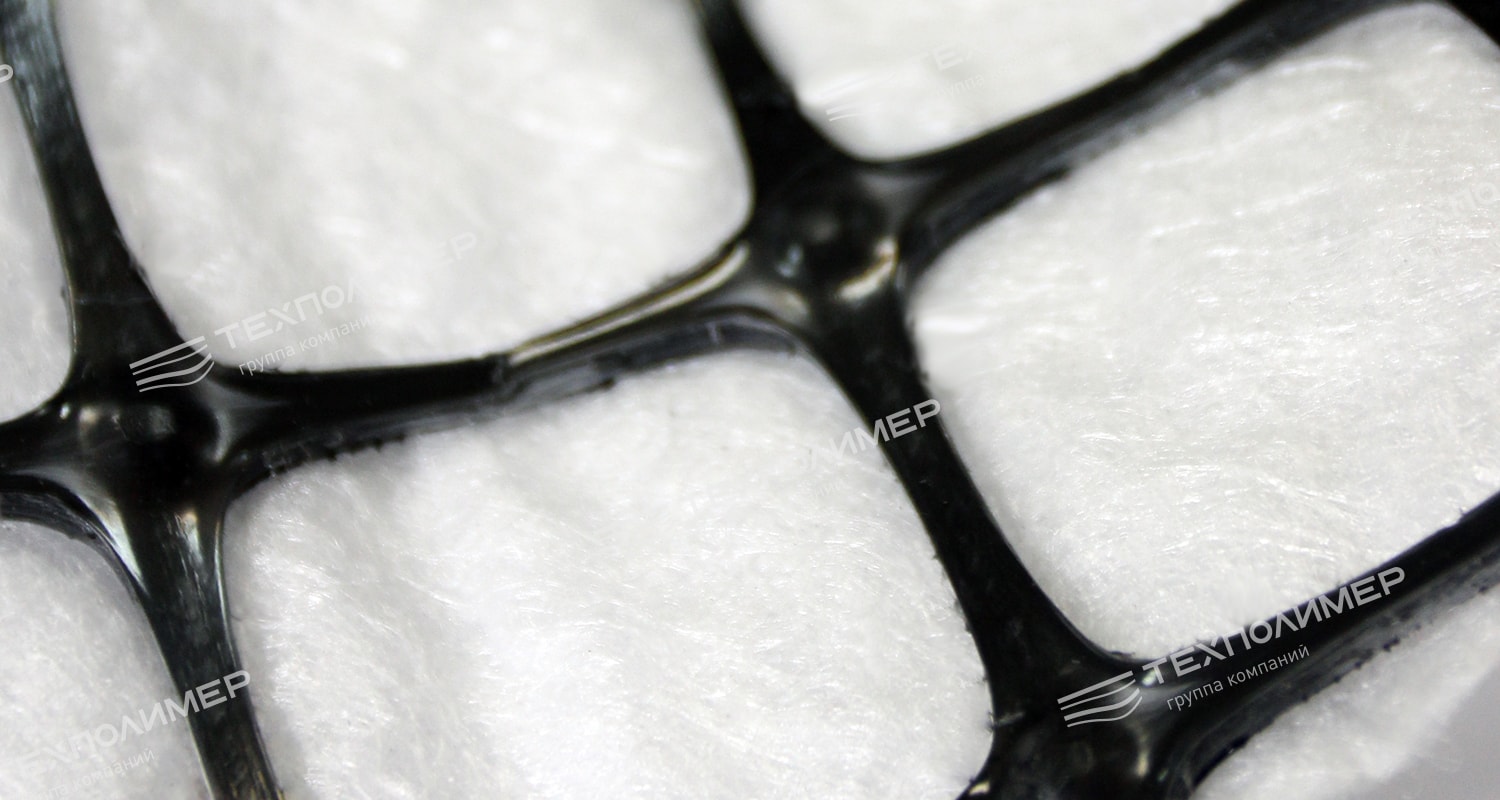

We supply SD-20/30/40/45/50 grades, which differ in tensile load and areal density. The SD/M grade is the same SD geogrid, thermally bonded to geotextile.

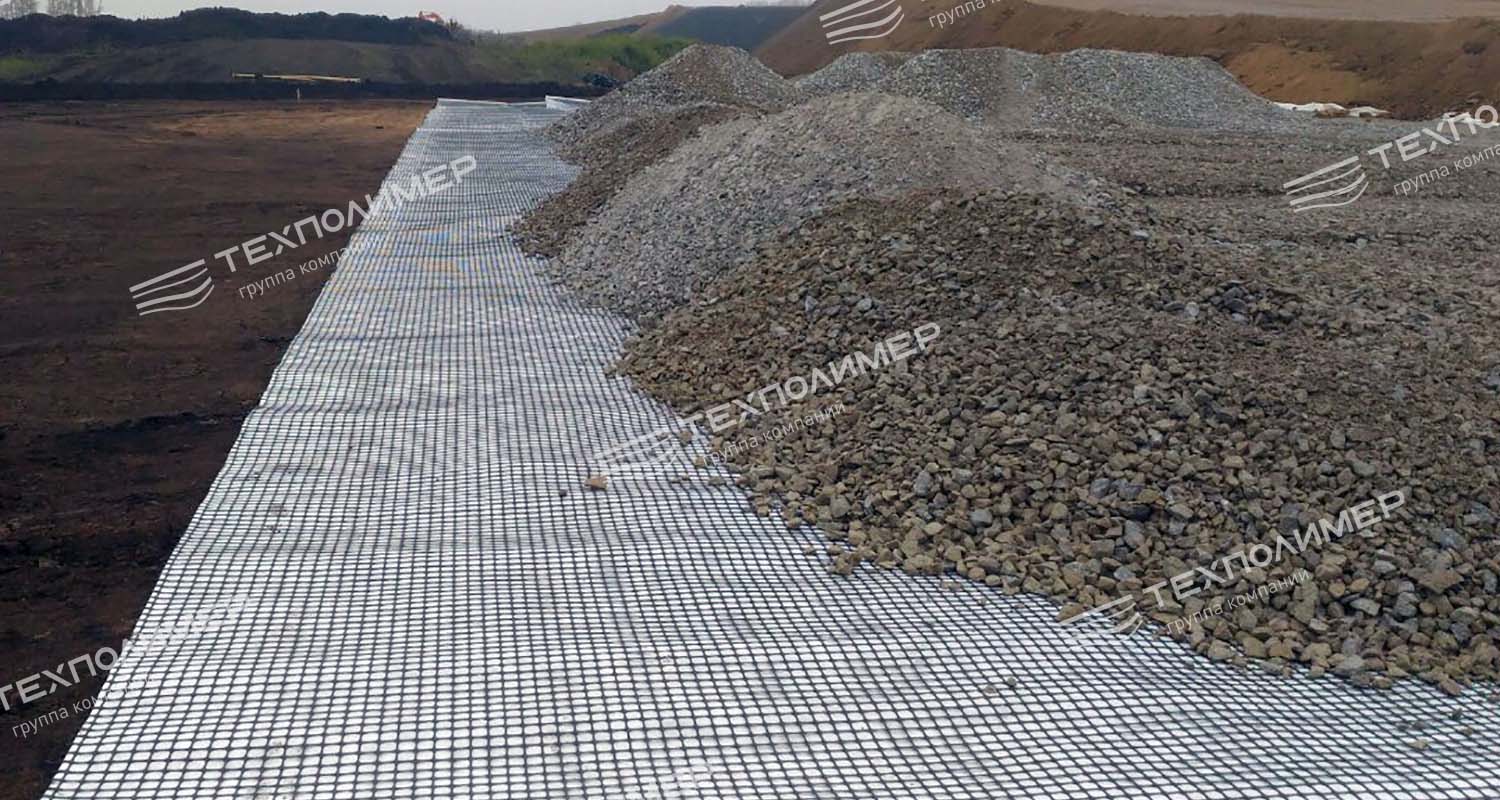

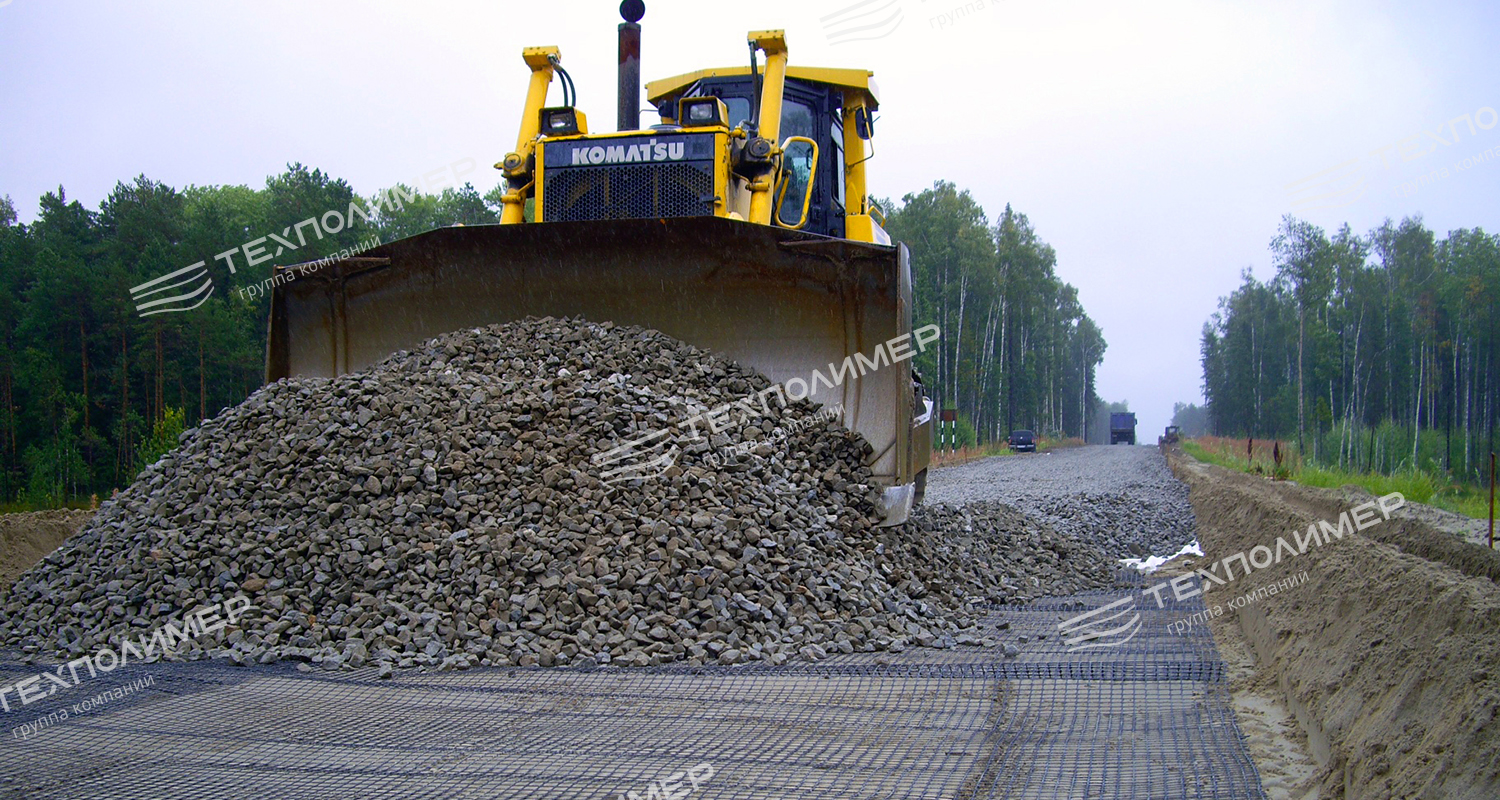

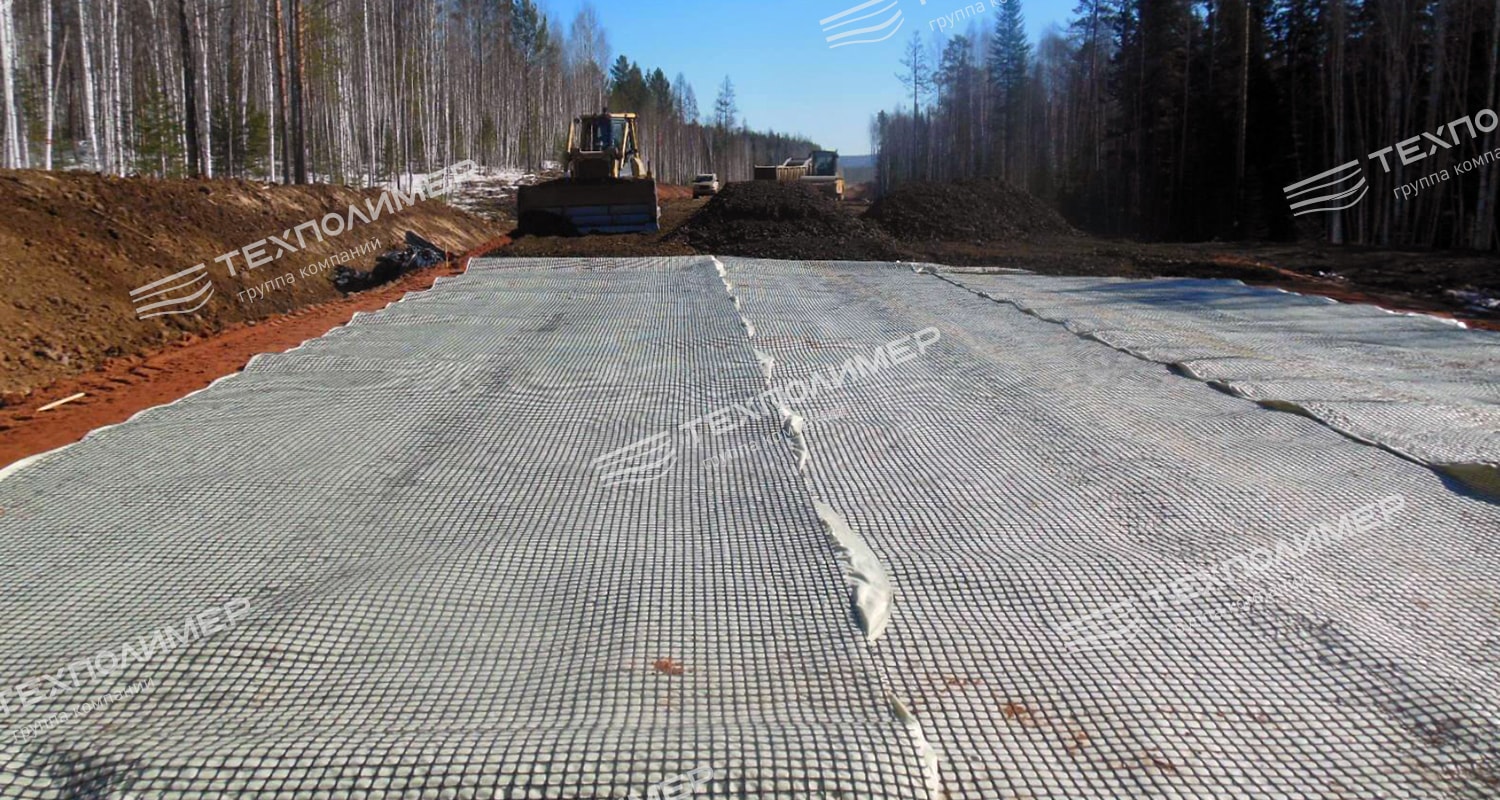

The material is used in road construction to reinforce and ensure the even settlement of fill. The extruded geogrid prevents rutting, cracking, potholes and frost heave, and reduces construction, maintenance and repair costs. It reinforces the bases of pavements and structures on weak soils. It evenly redistributes static and dynamic loads and significantly extends the service life of the structure.
- Reinforcement of road pavement structural layers
- Strengthening of railway embankment foundations
- Construction of heavily loaded sites
- Shoulder reinforcement and carriageway widening

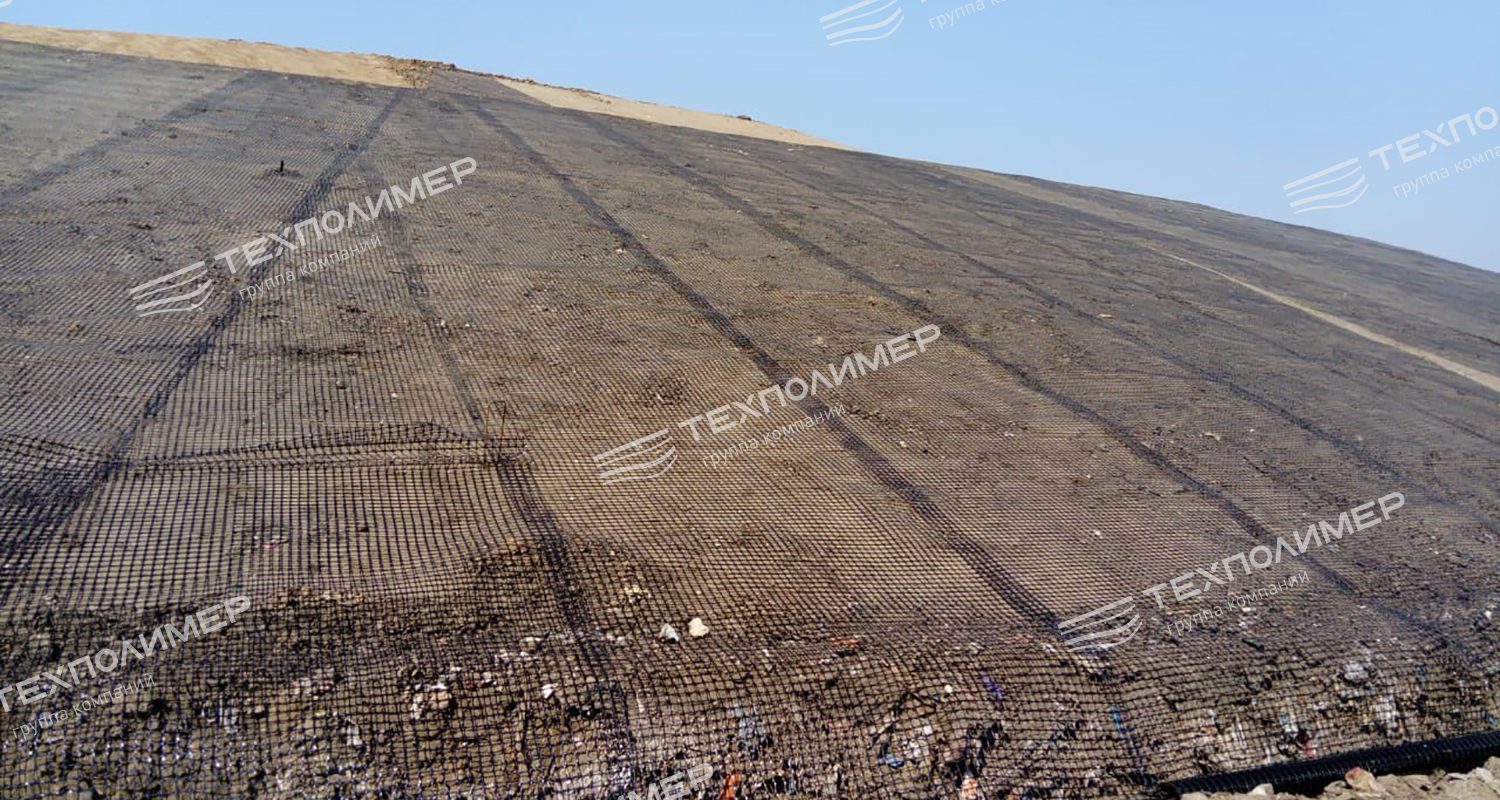

- Rockfall protection
- Separation of materials with different fractions, preventing layer mixing
- Reinforcement of load-bearing layers in road pavement structures
- Resistance to dynamic and static loads
- Extended service life of the structure through improved strength and performance characteristics
- High material strength
- Easy installation
| Technical specifications of the SD geogrid, STO 56910145-016-2015* | ||||||
| Tensile load, minimum, kH/m | ||||||
| Geogrid designations | At the specified load | At relative elongation | Relative elongation at maximum load not more than, % | Areal density, g/m², +3%-10% | ||
| 2% | 5% | |||||
| longitudinal/transverse | longitudinal/transverse | longitudinal/transverse | longitudinal/transverse | 40х40 | 65х65 | |
| SD-20 | 20/20 | 7/7 | 15/15 | 20/20 | 220 | 230 |
| SD-30 | 30/30 | 10/10 | 20,5/20,5 | 330 | 340 | |
| SD-40 | 40/40 | 13/13 | 26/26 | 530 | 540 | |
| SD-45 | 45/45 | 15/15 | 30/30 | 560 | 570 | |
| SD-50 | 50/50 | 16/16 | 31,5/31,5 | - | 640 | |
| Roll size | ||||||
| Width/length, m | 4/50 | |||||
| Aperture size | ||||||
| Width/length, mm | 40/40, 65/65 | |||||
| * The material complies with GOST R 56338-2015 | ||||||
Buy SD geogrid from the manufacturer
«TECHPOLYMER» — the largest geogrid manufacturer in Russia. We have been operating since 1994 and supply materials to leading companies: "Rosneft", "Gazprom", "Rosatom", "Russian Railways" and others. We handle the full scope of work — from design through installation and commissioning. The price of SD geogrid depends on the grade, cell size and supply volume. We ship products in any volume throughout Russia and beyond its borders.
-
