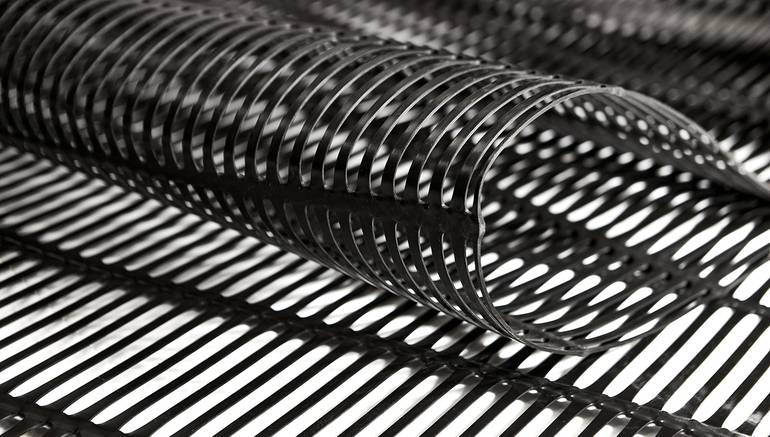

SO geogrid is a roll material designed for reinforcement in road construction. The geogrid evenly redistributes static and dynamic loads, prevents rutting, cracks, potholes and frost heave, and reduces the costs of construction, maintenance and repair of the facility.
The SO geogrid replaces reinforced-concrete retaining walls and enables construction at any time of year. It reduces the required right-of-way width and the volume of aggregate materials. It can be used in confined conditions and for constructing slopes with an inclination angle of up to ninety degrees.
Uniaxial geogrid is used for constructing reinforced-soil embankments, soil retaining walls, noise barriers, earth dams, quay walls and shore protection structures, as well as sites designed for high dynamic and static loads.
- Reinforced soil embankments
- Earth retaining walls
- Noise berms, debris-flow protection dams
- Anti-landslide measures
- Slope and cut reinforcement
- Bridge approaches and cones
- Quay walls and banks
- Heavily loaded platforms and lanes
- Construction in confined conditions
- Reduced right-of-way area
- Creation of slopes with an inclination angle of up to 90°
- Reduced volumes of imported granular materials
- Cost-effective replacement for reinforced concrete retaining walls
- The absence of concrete work allows construction at any time of year
| Technical specifications of СО geogrid, СТО 56910145-016-2015 | |||||||||||
| Geogrid designations | Tensile load, minimum, kH/m | Relative elongation at maximum load maximum, % | Areal density, g/m², +3%-10% | ||||||||
| At specified load | At relative elongation | ||||||||||
| 2% | 5% | ||||||||||
| СО-90 | 90 | 20 | 40 | 20 | 690 | ||||||
| СО-120 | 120 | 30 | 60 | 940 | |||||||
| СО-160* | 160 | 40 | 80 | 1250 | |||||||
| along | along | along | along | ||||||||
| Roll size | |||||||||||
| Width, length, m | 1,05*50 | ||||||||||
| Aperture size | 90 | 120 | 160 | ||||||||
| Width, length, mm | 16*235 (19*180) | 16*235 (19*180) | 16*230 (19*180) | ||||||||
|
*The full list of geogrid grades is available upon request. **By agreement with the customer, the geogrid panel size may be different. |
|||||||||||
Buy SO geogrid from the manufacturer
«ТЕХПОЛИМЕР» is the largest geogrid manufacturer in Russia. We have been operating since 1994 and supply materials to leading companies: "Rosneft", "Gazprom", "Rosatom", "Russian Railways" and others. We handle the full scope of work — from design through installation and commissioning. We ship products in any volume throughout Russia and beyond its borders.
We produce the СО-90, СО-120 and СО-160 grades, which differ in tensile load and surface density.
-
Gallery
-
