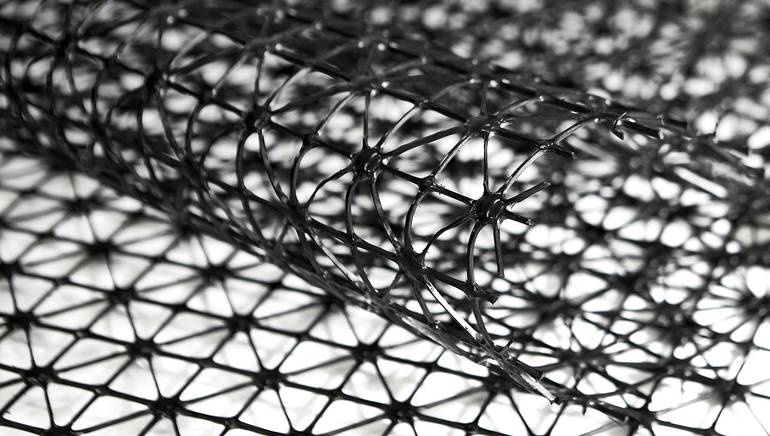

A biaxial geogrid distributes tensile forces in two directions — longitudinally and transversely, while a triaxial geogrid distributes them across all 360°. A hexagonal geogrid is a roll material with cells shaped as equilateral triangles, manufactured from polypropylene.
A triaxial geogrid is used for reinforcement in the construction of roads and areas subject to high dynamic loads. It slows down or prevents the formation of cracks, ruts, potholes and frost heave, reducing the costs of maintaining and repairing the site.
When using a triaxial geogrid, there is no need to determine the direction of the dominant load precisely, which simplifies the construction process. The ST geogrid reduces construction costs by cutting the volume of excavation work and the amount of aggregate required by up to 50%.
- Reinforced soil embankments
- Soil retaining walls
- Noise berms, earth debris-flow dams
- Landslide protection measures
- Reinforcement of slopes and cuts
- Bridge approaches and cones
- Quay walls and banks
- Heavily loaded areas and lanes
- Construction in restricted conditions
- Reduced right-of-way area
- Creation of slopes with an inclination angle of up to 90°
- Reduced volumes of imported bulk materials
- Cost-effective replacement for reinforced concrete retaining walls
- The absence of concrete work enables construction at any time of year
| Technical characteristics of the ST geogrid, СТО 56910145-016-2015 | |||||
| Geogrid designations | Tensile load, minimum, кH/m | Relative elongation at maximum load maximum, % | Surface density, g/m², +3%-10% | ||
| At the specified load | At relative elongation | ||||
| 2% | 5% | ||||
| СТ-160 | 13,5/13,5 | 3/3 | 7,5/7,5 | 20/20 | 400 |
| СТ-170 | 17/17 | 3,5/3,5 | 9/9 | 500 | |
| СТ-180 | 20/20 | 4,6/4,6 | 10,6/10,6 | 640 | |
| along/across | along/across | along/across | along/across | ||
| Roll size | |||||
| Width/length, m | 4/50 | ||||
Buy a triaxial geogrid from the manufacturer
«TECHPOLYMER» — the largest geogrid manufacturer in Russia. We have been operating since 1994 and supply materials to leading companies: "Rosneft", "Gazprom", "Rosatom", "RZD" and others. We handle the full range of work — from design to installation and commissioning.
The cost per m2 of geogrid depends on the grade, cell size and supply volume. We ship products in any volume throughout Russia and beyond its borders.
-
