Today, plastic sheet piling is the optimal solution for shoreline reinforcement. The products have a high load-bearing capacity and reliably protect soil from erosion.
Technopolymer is the largest manufacturer of geosynthetic materials in Russia. We supply products to Gazprom, Rosneft, Rosatom, Russian Railways and other federal companies.

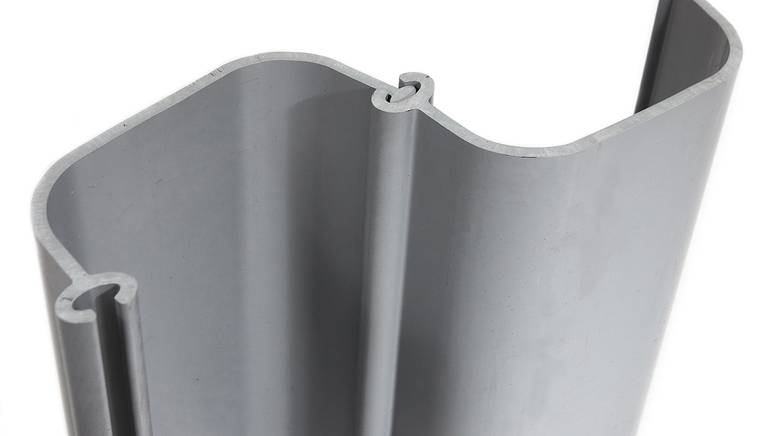

You can purchase geosheet piling from us: profiled PVC sheet piling with interlocks. We supply materials with widths of 250 and 600 mm. We will select the optimal option for your requirements. To receive a commercial offer, complete the form below.
Soil reinforcement materials are made from wood, metal, reinforced concrete and PVC. The latter outperforms its alternatives in every respect — it is the most advanced solution.
Plastic sheet piling for slope reinforcement is resistant to water, ultraviolet radiation and aggressive substances. It does not rust or rot, so it lasts for decades.
PVC sheet piling for bank protection can be used repeatedly, whereas wooden and reinforced-concrete products are suitable only for single use — they cannot be dismantled without damage.
Larsen sheet piling remains popular today — a metal profile in the form of a trough with grooves or interlocks. German engineer Trygve Larsen invented this solution as early as 1902.
Despite all the advantages of Larsen sheet piling, it would be rational today to replace it with a plastic alternative. TEXPOLIMER geosheet piling does not rot or rust and therefore lasts longer. At the same time, our solution is simple and convenient to install because PVC sheet piling weighs several times less than metal sheet piling.
Bank protection with plastic sheet piling is the optimal solution compared with metal, which rusts rapidly when in direct contact with water.
Buy sheet piling for bank protection from TEXPOLIMER
We supply two sheet piling grades for bank protection: SP250 and SP600. The numbers in the grade name indicate the width in millimetres.
SP250 specifications:
— strength — from 37 MPa;
— allowable moment — 17,22 kN-m/m;
— section modulus — 830 cm³/m;
— modulus of elasticity — 2000 MPa;
— moment of inertia — 8563,3 cm4/m;
— thermal conductivity — 0,19 W/m*К;
— thickness — 9 mm;
— depth — 118,5 mm;
— width — 250 mm;
— length — up to 15 m;
— weight per 1 m² — 23,5 kg.
SP600 specifications:
— strength — from 37 MPa;
— allowable moment — 22,42 kN-m/m;
— section modulus — 976 cm³/m;
— modulus of elasticity — 2000 MPa;
— moment of inertia — 11 022 cm4/m;
— thermal conductivity — 0,19 W/m*К;
— thickness — 9 mm;
— depth — 182 mm;
— width — 250 mm;
— length — up to 18 m;
— weight per 1 m² — 18,5 kg.
We will calculate the price of plastic sheet piling for bank protection based on your requirements. Complete the form below to receive a commercial offer.
-
Documentation
