During the construction of a building, problems may arise at the excavation stage due to the collapse of its walls or flooding of the site. Sheet piling can help prevent this by reinforcing the excavation.
Advantages of TEXPOLIMER sheet piling for excavation reinforcement:
— resistance to corrosion, ultraviolet radiation and aggressive substances;
— can be reused at different construction sites;
— simple and fast installation due to the low weight of the materials;
— can be used to form curves;
— an aesthetic appearance.
TEXPOLIMER geosheet piling will reliably protect your construction site from flooding and soil collapse. Constructing the excavation sheet-pile wall in advance helps prevent downtime and additional costs during construction.

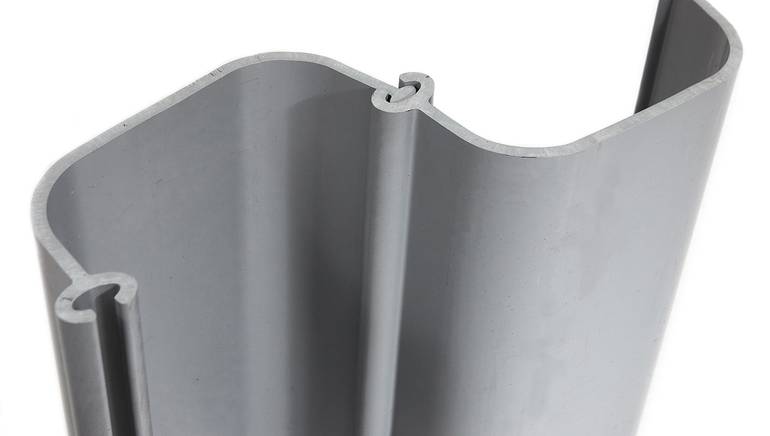

PVC sheet piling for excavations is an optimal solution that outperforms traditional Larsen steel sheet piles. Plastic products are less expensive than metal ones, significantly lighter, much easier to install, and have a high load-bearing capacity.
Price of sheet piling for excavation reinforcement
We supply the material in two grades: SP250 and SP600 (250 and 600 mm wide).
SP250 specifications:
— strength — from 37 MPa;
— allowable moment — 17,22 kN-m/m;
— section modulus — 830 cm³/m;
— modulus of elasticity — 2000 MPa;
— moment of inertia — 8563,3 cm4/m;
— thermal conductivity — 0,19 W/m*K;
— thickness — 9 mm;
— depth — 118,5 mm;
— width — 250 mm;
— length — up to 15 m;
— weight per 1 m² — 23,5 kg.
SP600 specifications:
— strength — from 37 MPa;
— allowable moment — 22,42 kN-m/m;
— section modulus — 976 cm³/m;
— modulus of elasticity — 2000 MPa;
— moment of inertia — 11022 cm4/m;
— thermal conductivity — 0,19 W/m*K;
— thickness — 9 mm;
— depth — 182 mm;
— width — 250 mm;
— length — up to 18 m;
— weight per 1 m² — 18,5 kg.
We will calculate the price of the sheet piling for excavation pit reinforcement based on your requirements. Complete the form below to receive a commercial offer.
-
