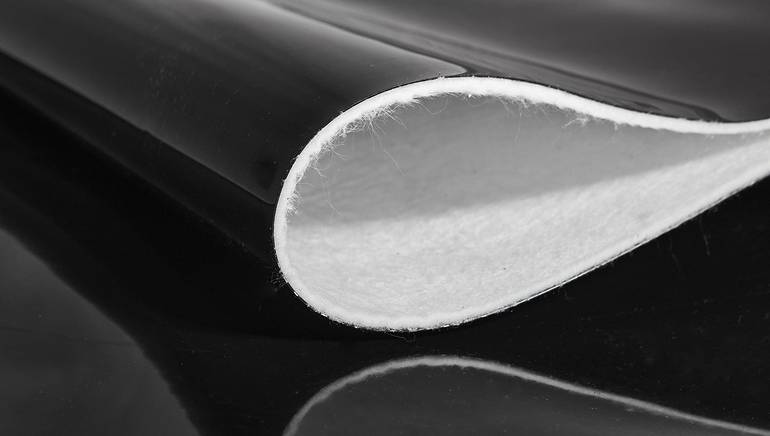

Polymer sheet with a protective and drainage coating, based on a smooth Type 1 geomembrane thermally bonded to a nonwoven synthetic polypropylene-based material (geotextile). This solution protects the geomembrane from damage during the construction of facilities on weak subgrades and soils with sharp inclusions.
- Type 5/1 – smooth geomembrane with a protective and drainage coating on one side
- Type 5/2 – smooth geomembrane with a protective and drainage coating on both sides
- Savings on the protective layer
- Width — up to 5000 mm
- Manufactured from virgin raw materials
- 100% waterproof
- High tensile strength
- Elongation at break — from 500%
- Operating temperature range from plus 60 °C to minus 60 °C
- Resistance to corrosion, rotting and ultraviolet radiation
- Environmental safety
- Service life — at least 50 years
- Municipal solid waste (MSW) and industrial waste (IW) landfills
- Oil production well pads
- Road construction
- Oil and gas pipelines
- Tank farms and containment ponds
- Hydrometallurgical heap leaching sites
- Sludge and tailings storage facilities
- Toxic and radioactive waste burial sites
- Storage and emergency tanks
- Dams, reservoirs and cutoff walls
- Lagoons (manure storage facilities), silage pits and biogas reactors
- Artificial water bodies and landscape construction
- Hydraulic engineering facilities
- Underground structures
| Technical specifications of type 5 geomembrane, TU 2246-001-56910145-2014, GOST R 56586-2015 | ||||||||||||
| HDPE | ||||||||||||
| Parameter | Type 5/1** | Type 5/2** | ||||||||||
|
Nominal polymer sheet thickness, mm |
1,0 | 1,5 | 2,0 | 1,0 | 1,5 | 2,0 | ||||||
| *Standard roll size, m | 5*100 | 5*50 | 5*50 | 5*100 | 5*50 | 5*50 | ||||||
| Tensile strength, kN/m, min. | 27 | 40 | 53 | 15 | 25 | 35 | ||||||
| Elongation, %, min. | 600 | 500 | ||||||||||
| Tear resistance, min., N | 130 | 200 | 260 | 130 | 200 | 260 | ||||||
| Puncture resistance, min., N | 650 | 700 | 800 | 1000 | 1100 | 1200 | ||||||
| Water permeability, water absorption | 0 | |||||||||||
| Vapour permeability | 0 | |||||||||||
| Operating temperature range, °C | from -60 to +60 | |||||||||||
| UV resistance, min., % | 90 | |||||||||||
|
* Sheets of other sizes may be manufactured by agreement with the customer ** Geotextile density, 250 g/cm². Geotextile with a different surface density may be used by agreement with the customer Full geomembrane specifications are available upon request |
||||||||||||
Geomembrane: Type 5 from the manufacturer
Buy a type 5 geomembrane «TECHPOLYMER» from a leading manufacturer in Russia. We have been operating since 1994 and supply materials to leading companies, including Rosneft, Gazprom, Rosatom, Russian Railways and others. We handle the full scope of work — from design to installation and commissioning.
The price of a type 5 geomembrane depends on the material, order volume and delivery location. We ship products in any volume throughout Russia and beyond.
-
