Mobile road surfacing

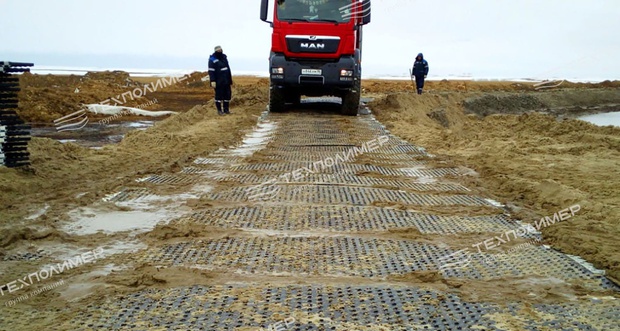

"TEKHPOLYMER" mobile road plates are designed for constructing temporary roads for special-purpose vehicles in swampy areas and during periods of muddy conditions. MDPs are also used to construct temporary bases, vehicle parking areas and helicopter landing pads. The plates enable the assembly of access roads or areas of any configuration and size.

МДП «ТЕХПОЛИМЕР-1» are intended for access roads and sites for heavy-duty equipment on an unprepared base, including Type I–II marshes, without additional base preparation. The plates are made of high-molecular-weight polyethylene by pressing and have an internal honeycomb structure.

МДП «ТЕХПОЛИМЕР-2» are intended for access roads and sites for heavy-duty equipment on an unprepared base, including marshes with a constructed embankment base. The plates are made of polymer sheet by extrusion and are equipped with interlocking connections.

МДП «ТЕХПОЛИМЕР-3» are used to create service roads and sites, as protective covering for lawns and topsoil when used with wheeled and tracked vehicles with a load of up to 40 tonnes. They are made of polymer sheet by extrusion and are equipped with interlocking connections.


• Low weight
• Repairability
• Positive buoyancy — suitable for marshy terrain
• Textured surface — prevents machinery from slipping
• Simple installation and removal
• Reusable
• Can be laid on uneven surfaces
• High flexural stiffness per unit length
• Allows special-purpose machinery to move without preparing an access route

MDP mats fit into a standard ISO container and can be easily moved using a conventional forklift. In hard-to-reach areas, the mats can be delivered by helicopter.


The plates do not conduct electricity, which significantly expands their range of applications. The plates are suitable for use in the oil and gas, mining, energy and military industries, as well as for emergency operations.

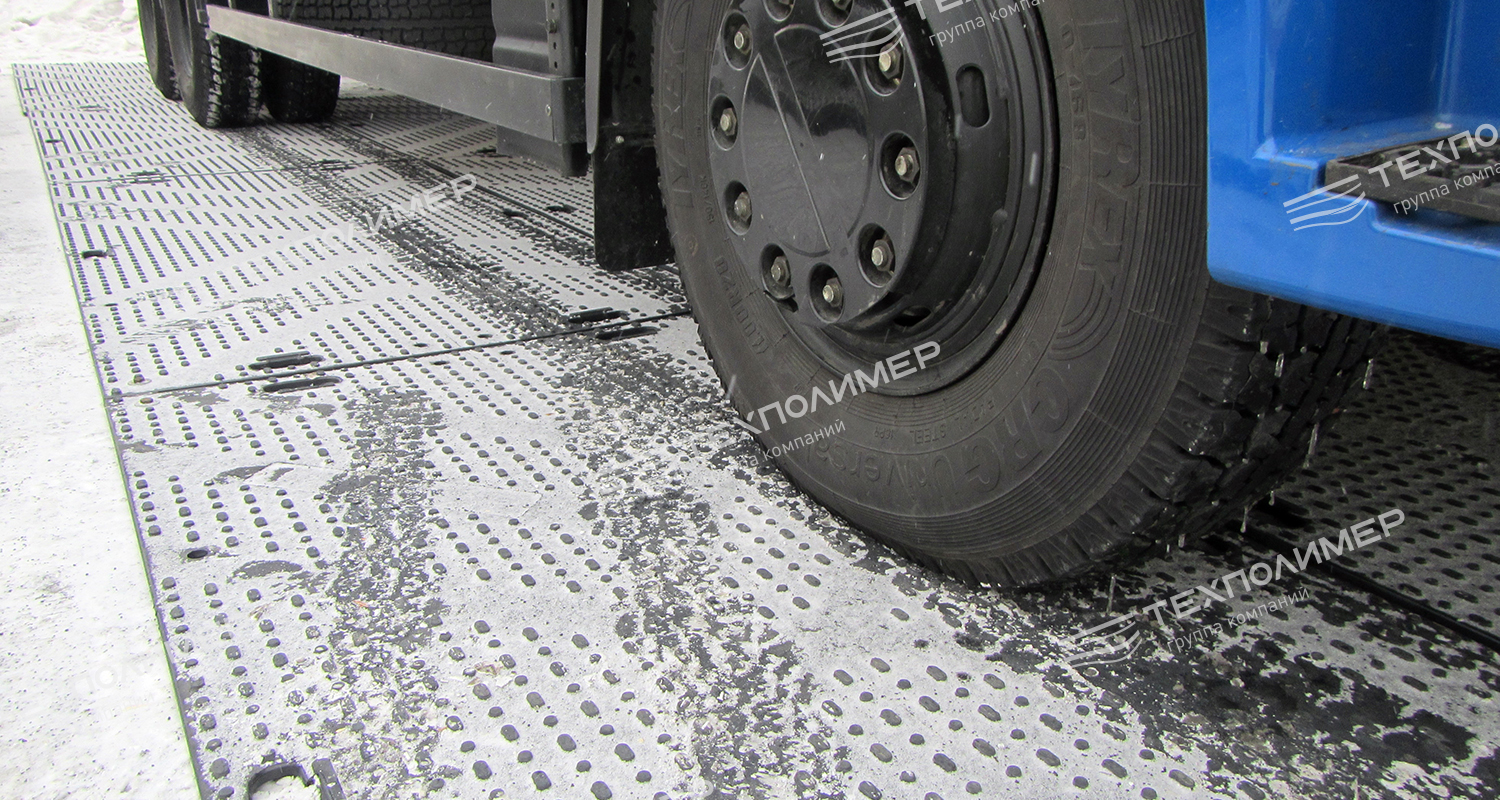

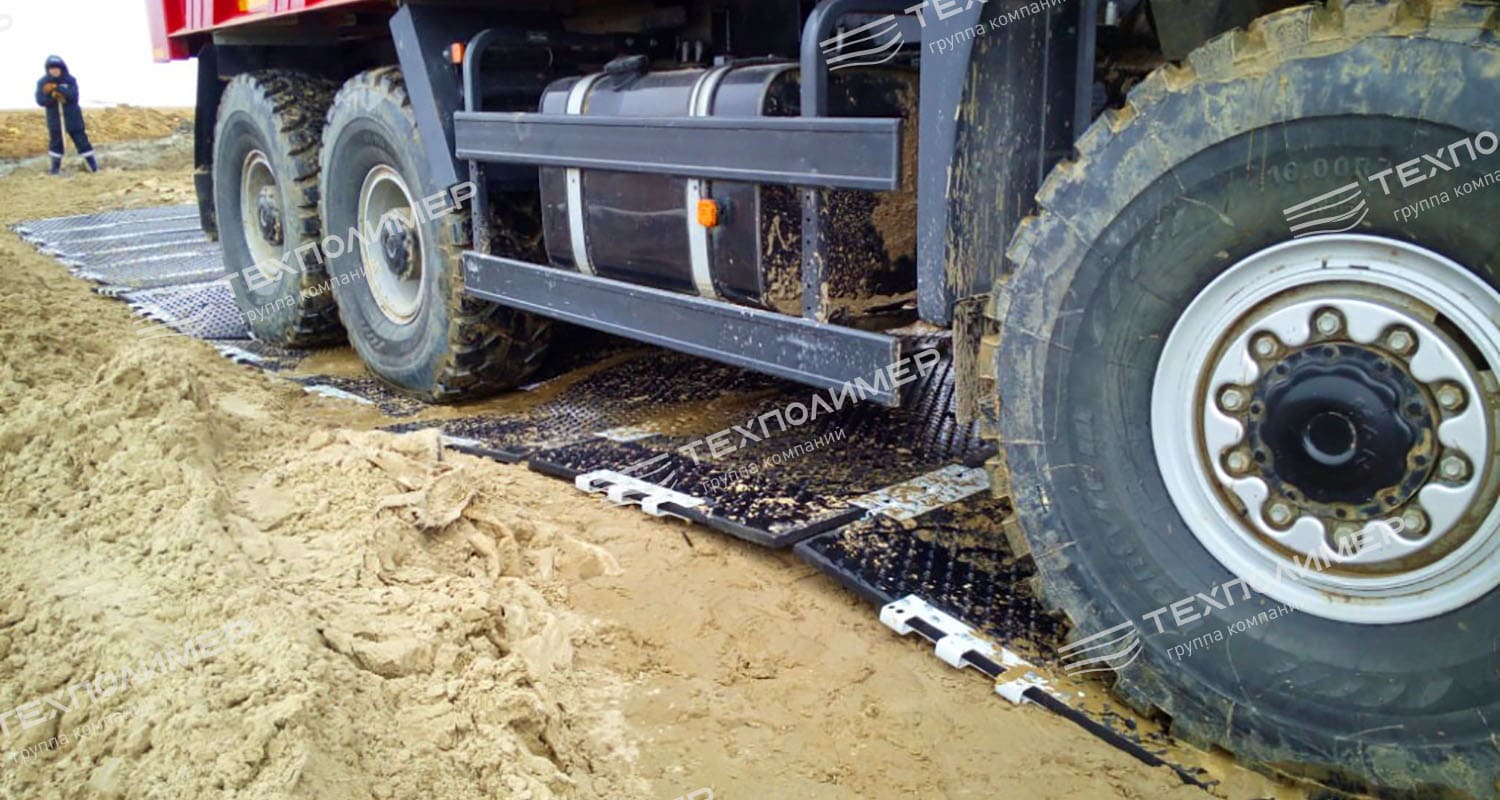

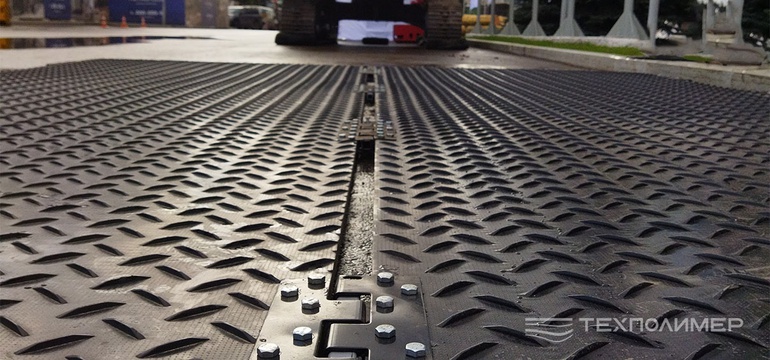

Mobile road plates are equipped with overlapping flanges and locking connections that enable quick and easy installation. The textured surface prevents vehicles from slipping on the plates.

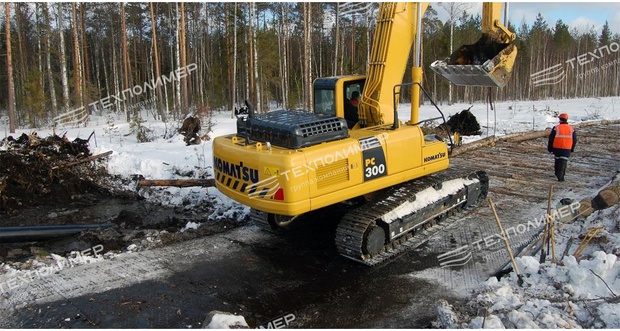

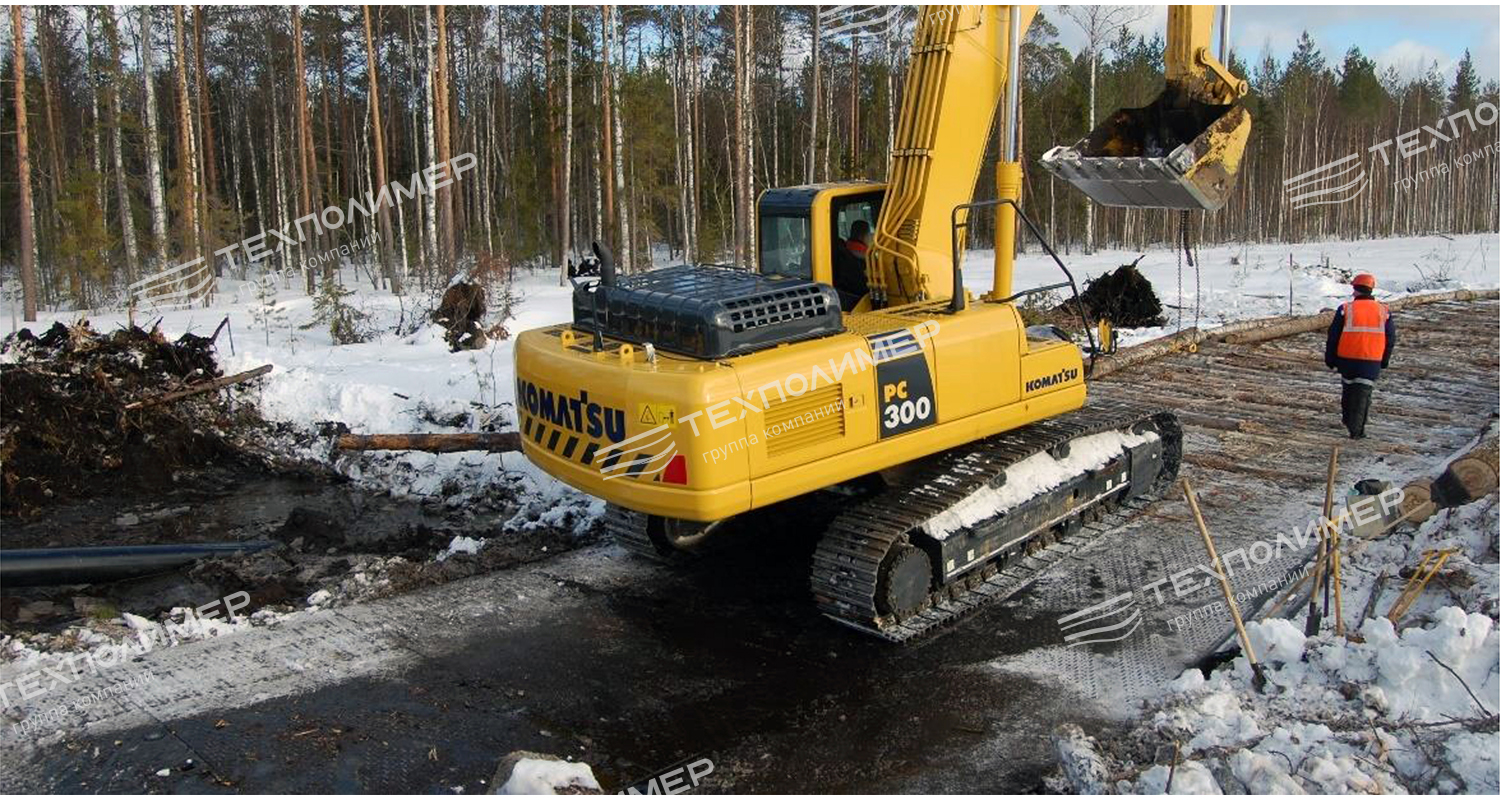

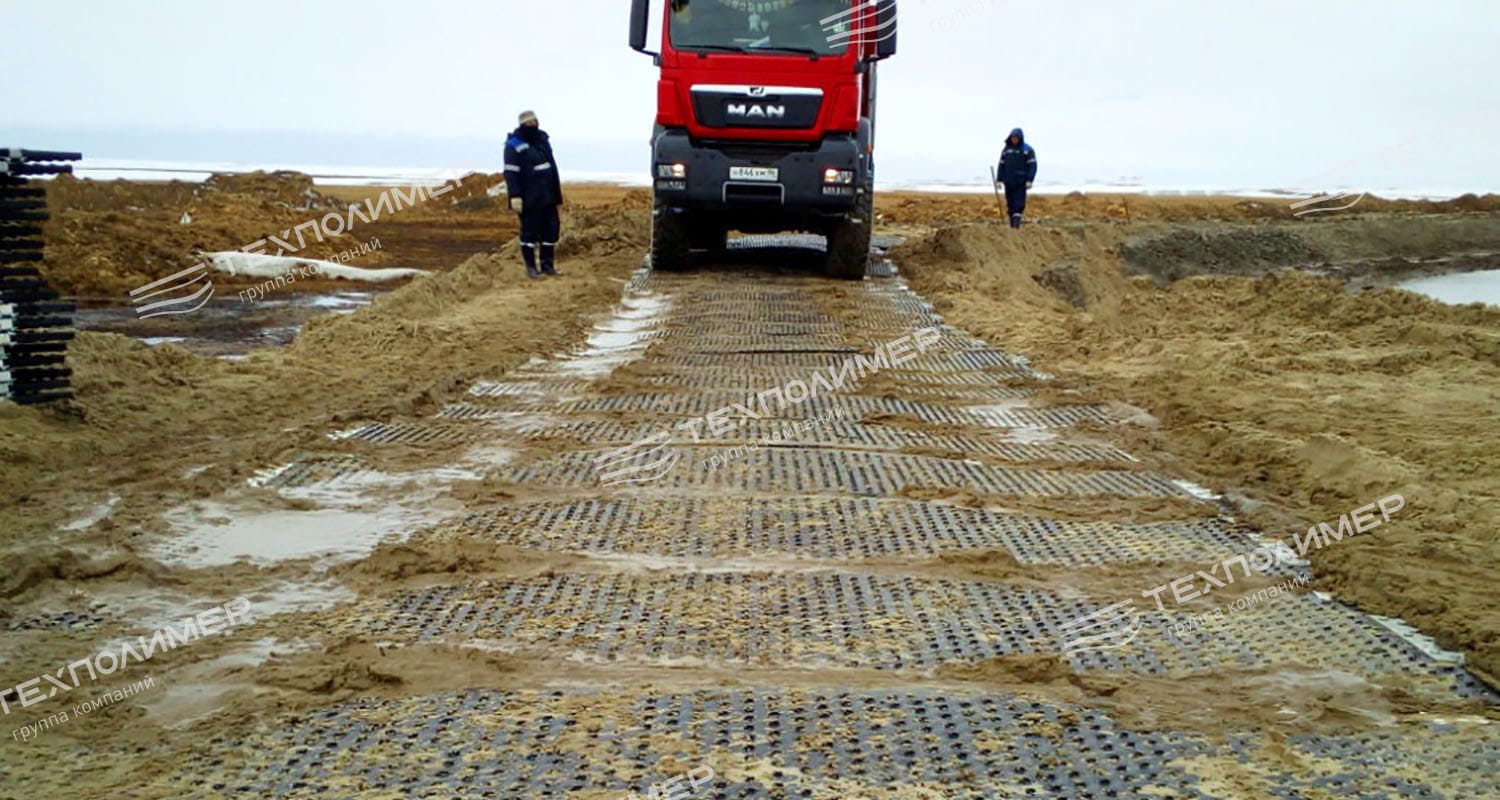

Polymer road plates can be laid on any unprepared surface: snow, ice, sand or clay. Installation is possible at sub-zero temperatures, and the plates are suitable for use in the Far North.

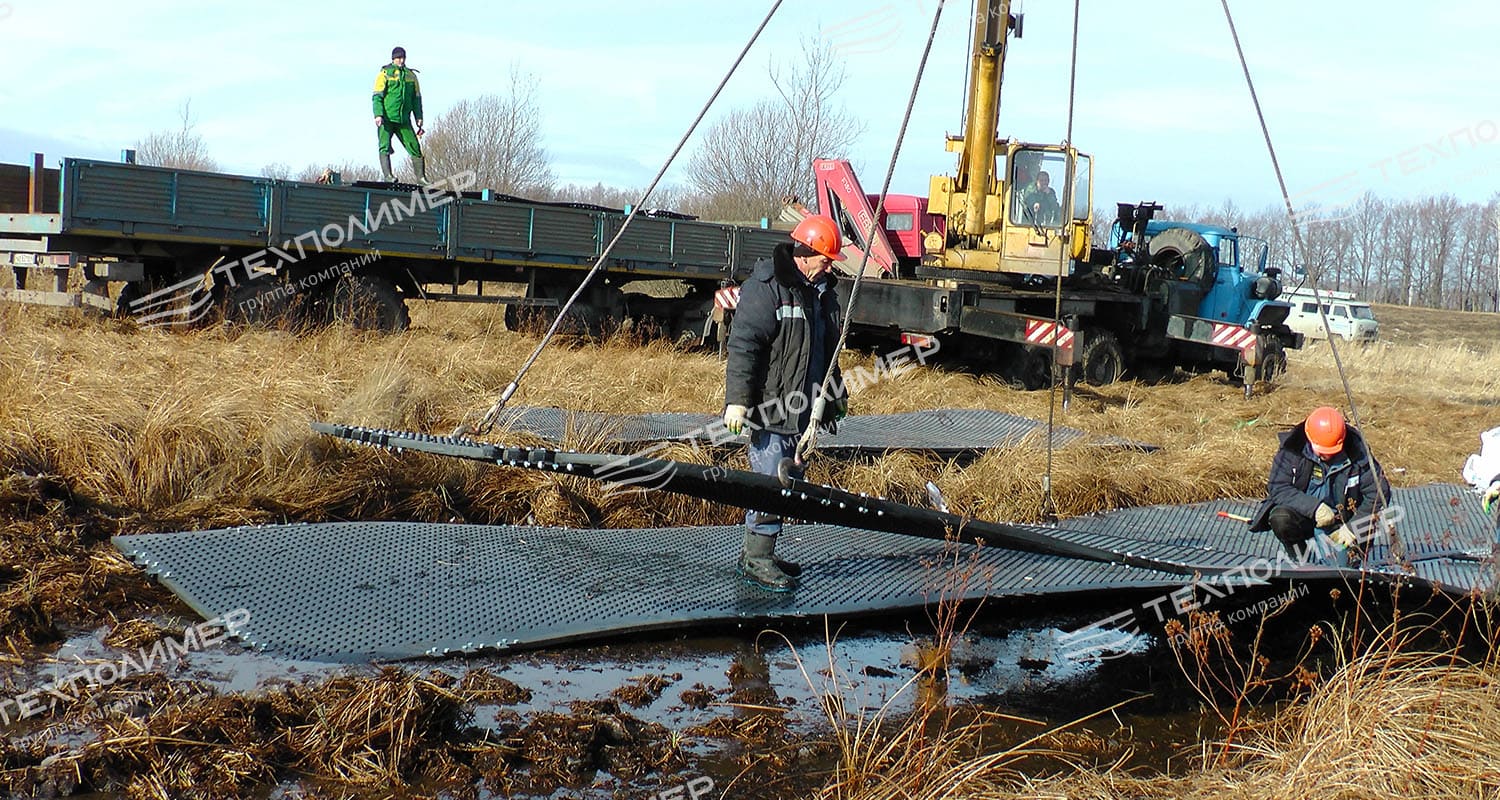

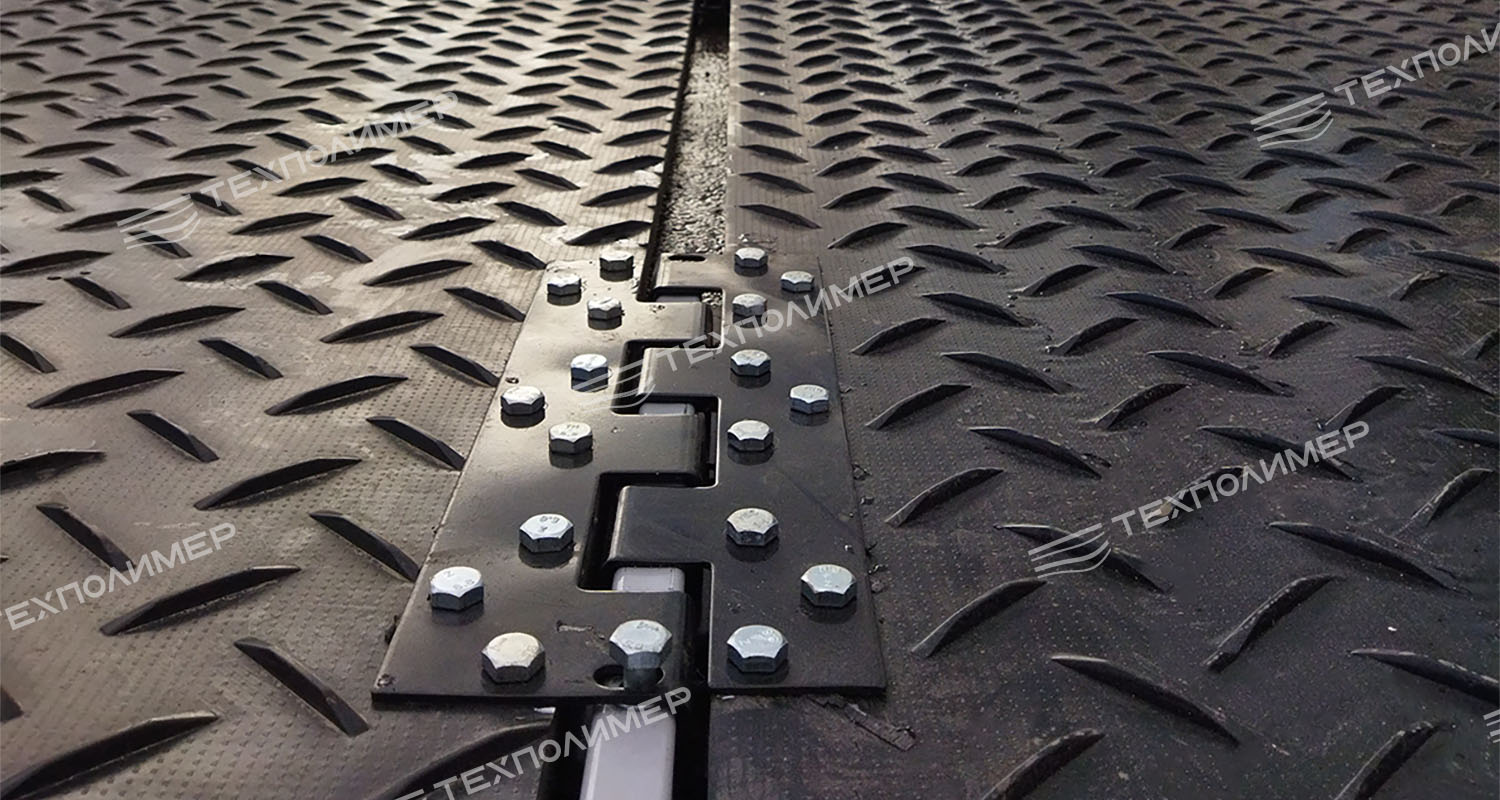

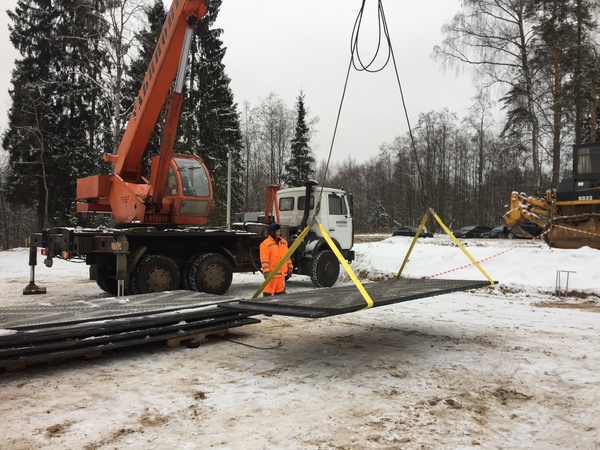

The simple installation system enables the rapid construction of a temporary access road. When laying the plates, the flange of one plate must overlap the flange of the next, with the locking holes aligned. Locking pins are inserted into these holes.

«ТЕХПОЛИМЕР» mobile road coverings are the most cost-effective option for organising a temporary access road. Unlike wooden mats, polyethylene plates do not rot, crack or absorb aggressive substances. Compared with log roadways, the plates offer easier installation, which does not require a large number of workers or specialised equipment. Compared with conventional ПДН plates, «ТЕХПОЛИМЕР» mobile road plates are lightweight, easy to relocate during installation and suitable for repeated use (at least 20 times).

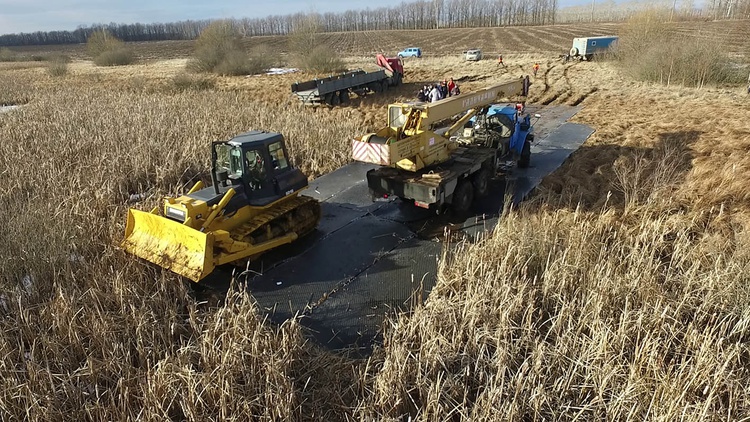

• Construction of temporary and permanent access roads and sites for heavy wheeled and tracked machinery in areas dominated by Type I–II wetlands.
• Construction of temporary roads and sites for construction and installation works on main pipelines during emergency response, as well as for the installation and repair of power transmission lines.
• Construction of temporary sites and ground coverings to protect the topsoil.
• Construction of sites for storing cargo and placing equipment, sites for mobile plants and residential camps, and temporary bases.
• Construction of mobile helicopter landing sites.
• Construction of vehicle parking areas in hard-to-reach regions.

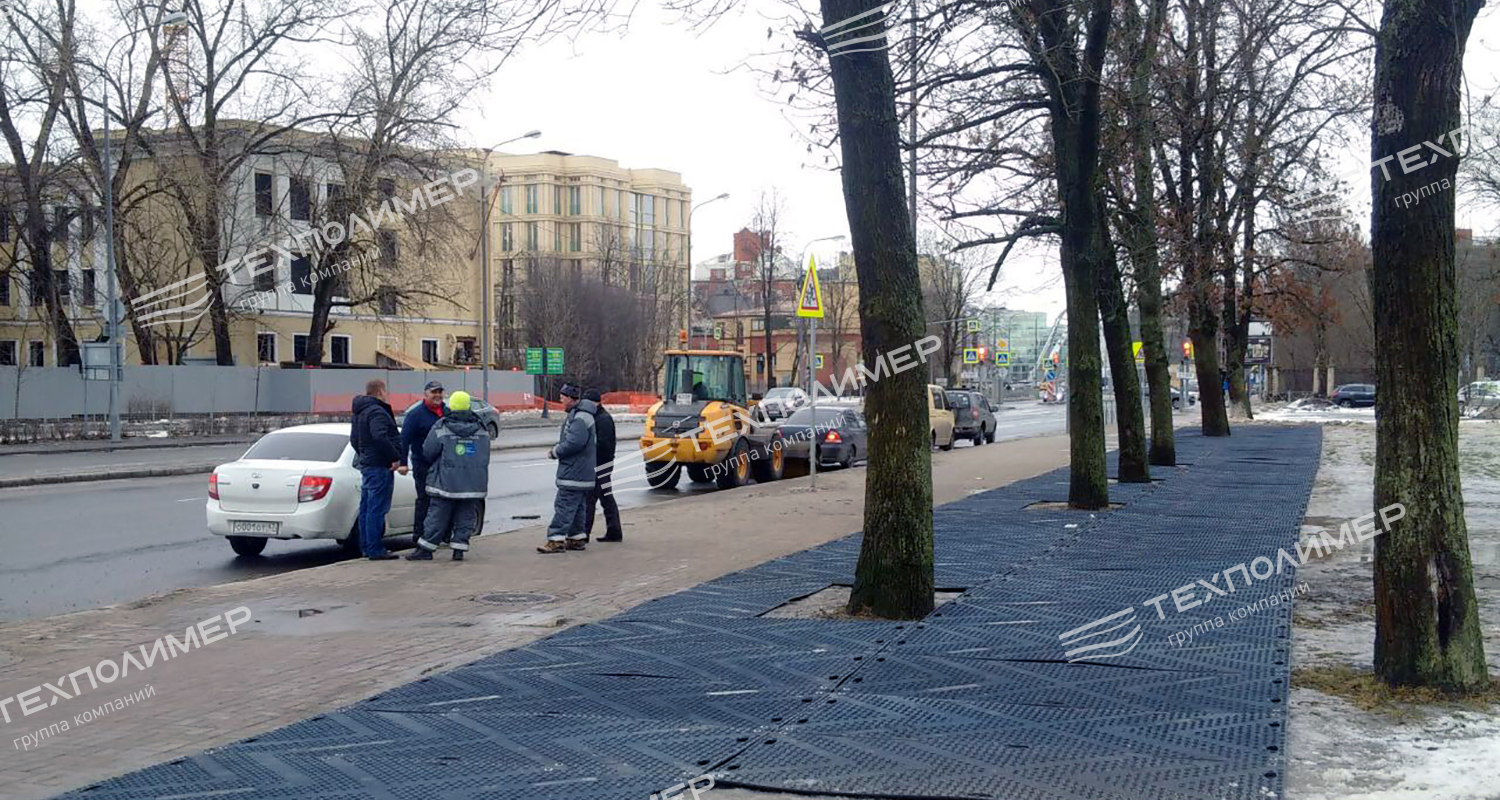

• Construction of sites on stadium lawns, ice arenas and city squares for mass events.
• Construction of temporary crossings over various utilities.
• Construction of sites for mobile drilling rigs
• Use of heavy machinery during periods of thaw to eliminate the need for land reclamation.
• Construction of any roads and sites for heavy wheeled and tracked machinery on valuable agricultural land and on sandy and clay soils with high moisture content.
• Construction of coverings for stables, equestrian arenas, livestock complexes and greenhouses.

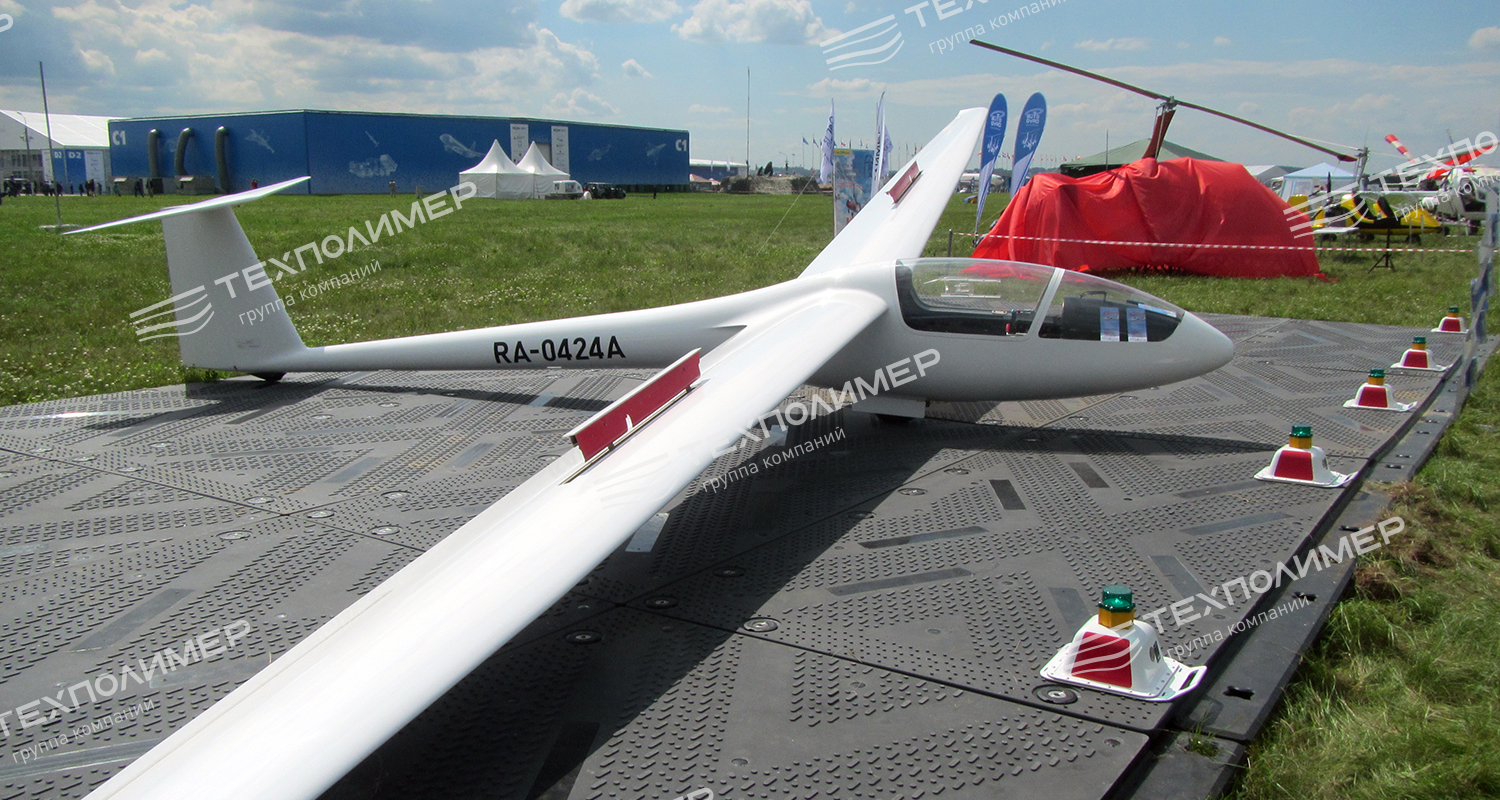

• Construction of coverings for outdoor and indoor exhibition and demonstration areas.
