ТУ 2246-001-56910145-2014, ГОСТ Р 56586-2015

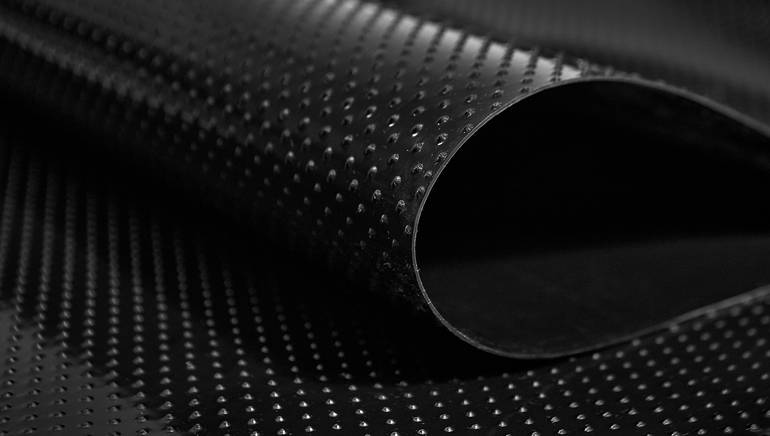

Polymer sheet with a textured surface for stronger bonding with soil. Provides waterproofing and protects soil from chemicals.
Geomembrane: Type 4
The textured surface of the polymer sheet helps increase friction between the material and the soil.
- Type 4/1 – one-sided texturing
- Type 4/2 – double-sided texturing
Advantages
- Suitable for use in seismic areas
- Width — up to 5000 mm
- Manufactured from virgin raw materials
- 100% watertight
- High tensile strength
- Elongation at break — from 100%
- Operating temperature range from plus 60 °C to minus 60 °C
- Resistant to corrosion, rot and ultraviolet radiation
- Environmental safety
- Service life — at least 50 years
- Field quality control
Applications
- Municipal solid waste (MSW) and industrial waste (IW) landfills
- Oil production well pads
- Road construction
- Oil and gas pipelines
- Tank farms and spill containment basins
- Hydrometallurgical heap leaching sites
- Sludge and tailings storage facilities
- Toxic and radioactive waste repositories
- Storage and emergency containment tanks
- Dams, reservoirs, cut-off walls
- Lagoons (manure storage facilities), silage pits, biogas reactors
- Artificial water bodies, landscape construction
- Hydraulic engineering structures
- Underground structures
| Technical specifications of type 4 geomembrane, TU 2246-001-56910145-2014, GOST R 56586-2015 | ||||||||||||
| Parameter | HDPE | |||||||||||
| Type 4/1 | Type 4/2 | |||||||||||
| Nominal thickness of polymer sheet, mm | 1,0 | 1,5 | 2,0 | 1,0 | 1,5 | 2,0 | ||||||
| Standard roll size*, m | 5*100 | 5*50 | 5*50 | 5*100 | 5*50 | 5*50 | ||||||
| Tensile strength, min., kN/m | 27 | 40 | 53 | 27 | 40 | 53 | ||||||
| Elongation at break, min., % | 700 | 100 | ||||||||||
| Tear resistance, min., N/mm | 125 | 187 | 249 | 125 | 187 | 249 | ||||||
| Puncture strength, min., N | 320 | 480 | 640 | 320 | 480 | 640 | ||||||
| Water permeability, water absorption | 0 | |||||||||||
| Vapour permeability | 0 | |||||||||||
| Operating temperature range, °C | from -60 to +60 | |||||||||||
| UV resistance, min., % | 90 | |||||||||||
|
* Sheets of other sizes may be manufactured by agreement with the customer Full geomembrane specifications are available upon request |
||||||||||||
Textured geomembrane from the manufacturer
We are a leading geomembrane manufacturer in Russia. We have been operating since 1994 and supply materials to major companies, including Rosneft, Gazprom, Rosatom, Russian Railways and others. We handle the full range of work — from design through installation and commissioning.
The price of Type 4 geomembrane depends on the material, volume and delivery location. We ship products in any volume throughout Russia and beyond.
-
